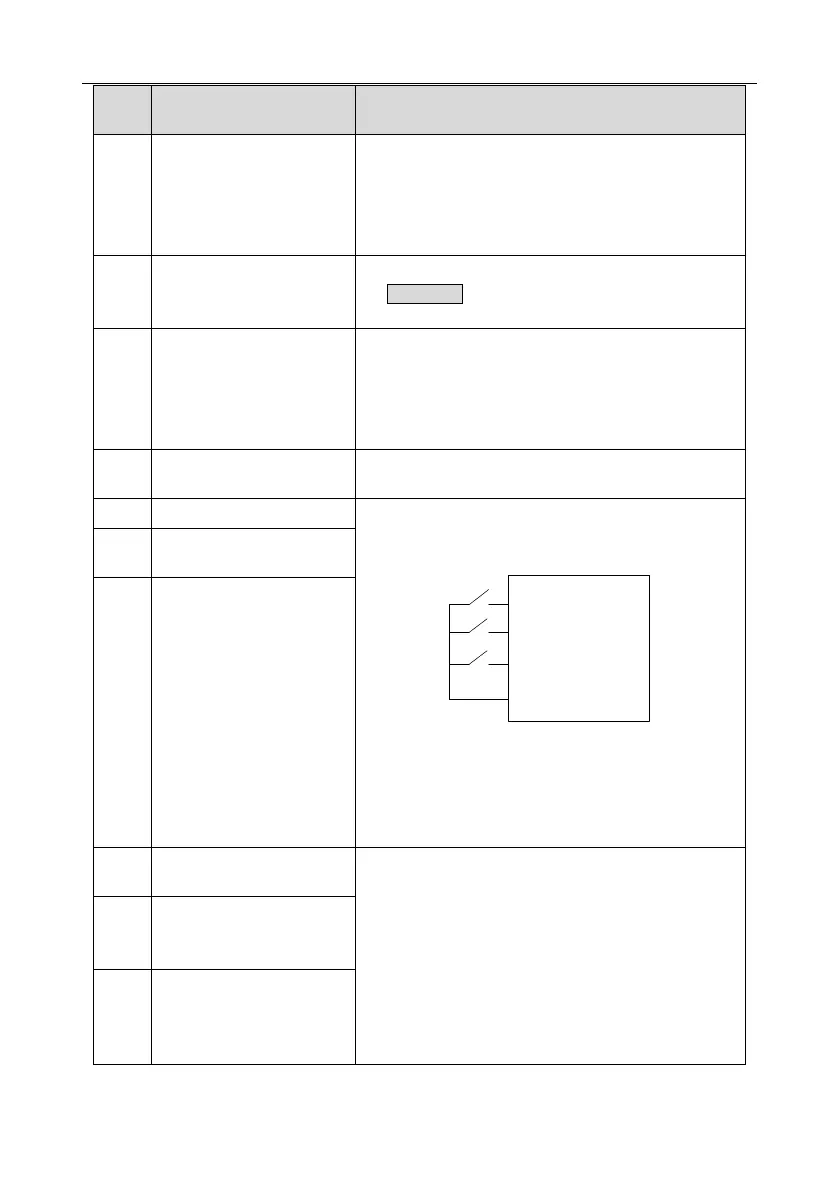

Goodrive350 series high-performance multi-function inverter Chapter 5
-89-
The inverter blocks output, and the stop process of motor
is uncontrolled by the inverter. This mode is applied in
cases of large-inertia load and free stop time; its
definition is the same with P01.08, and it is mainly used in
remote control.
External fault reset function, its function is the same with
the STOP/RST key on the keypad. This function can be
used in remote fault reset.
The inverter decelerates to stop, however, all the running
parameters are in memory state, eg PLC parameter,
wobbling frequency, and PID parameter. After this signal
disappears, the inverter will revert to the state before
stop.
When external fault signal is transmitted to the inverter,
the inverter releases fault alarm and stops.
Used to change the frequency-increase/decrease
command when the frequency is given by external
terminals.
K1
K2
K3
UP terminal
DOWN terminal
UP/DOWM
Zeroing terminal
COM
The terminal used to clear frequency-increase/decrease
setting can clear the frequency value of auxiliary channel
set by UP/DOWN, thus restoring the reference frequency
to the frequency given by main reference frequency
command channel.
Frequency decrease
(DOWN)
Clear frequency
increase/decrease setting
Switching between A setting
and B setting
This function is used to switch between the frequency
setting channels.
A frequency reference channel and B frequency
reference channel can be switched by no. 13 function;
the combination channel set by P00.09 and the A
frequency reference channel can be switched by no. 14
function; the combination channel set by P00.09 and the
B frequency reference channel can be switched by no. 15
function.
Switching between
combination setting and A
setting
Switching between
combination setting and B
setting
