INVT SPC Series User Manual

SPC Series Solar Pump Inverter Keypad operation guidelines
-13-
4 Keypad operation guidelines
4.1 Keypad introduction
The keypad is used to control the inverter, read inverter status, and set parameters. Use
a standard RJ45 crystal-head network cable as the extension cable.

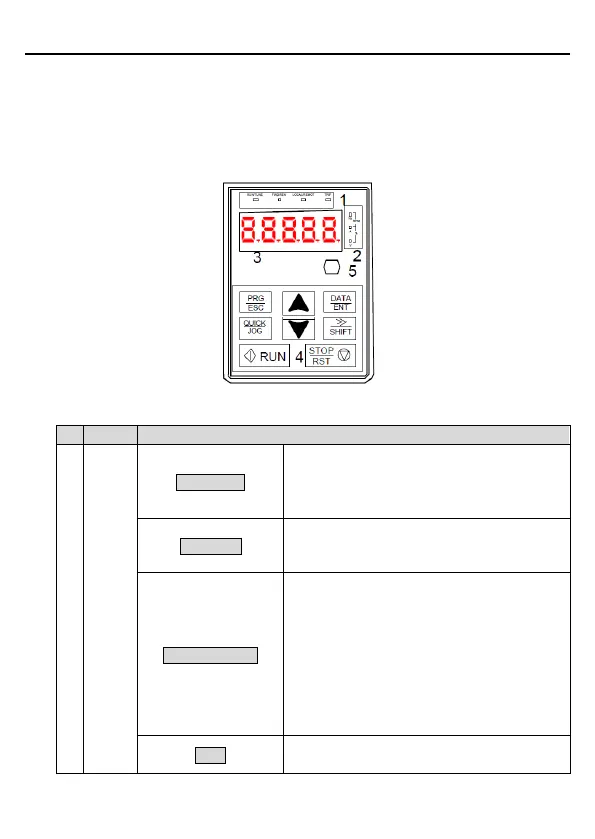

Figure 4-1 External keypad
No.
Name
Description
1
Status
indicator
RUN/TUNE
Inverter running status indicator.
Off: The inverter is stopped.
Blinking: The inverter is autotuning parameters.
On: The inverter is running.
FWD/REV
Forward or reverse running indicator.
Off: The inverter is running forward.
On: The inverter is running reversely.
LOCAL/REMOT
Indicates whether the inverter is controlled
through the keypad, terminals, or
communication.
Off: The inverter is controlled through the
keypad.
Blinking: The inverter is controlled through
terminals.
On: The inverter is controlled through remote
communication.
TRIP
Fault indicator
Off: in normal state
