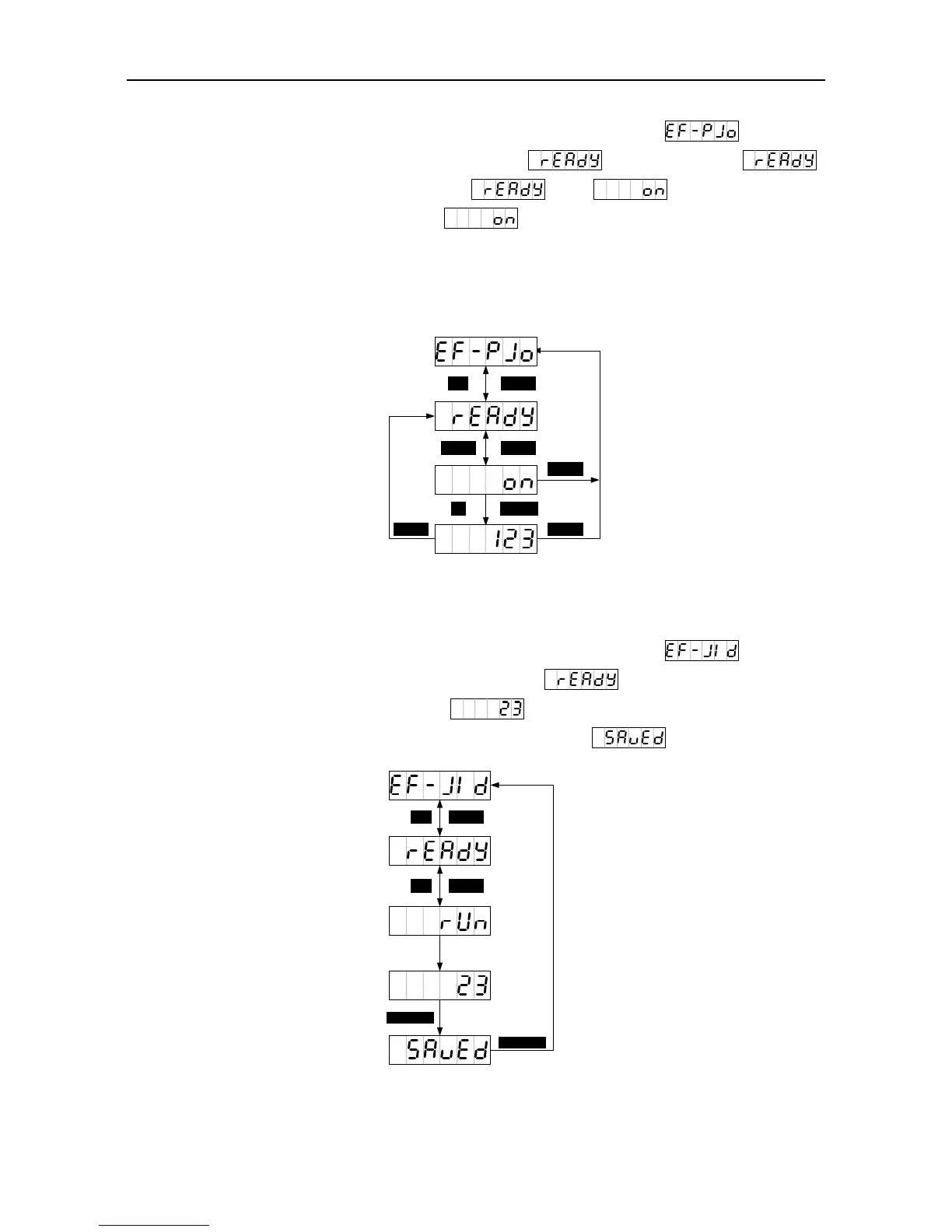

5.2.5.4 Operation flowchart of program commissioning

Press MODE key to the auxiliary function mode. Press UP/DOWN key to the menu, and

press SET key to the interface. The interface will display . In the interface of ,

SHIFT key can be used to switch between and , start and stop the

commissioning function. In the interface of , UP/DOWN key can be used to start the

program commissioning and has no relationship with P5.00. If the motor direction is counterclockwise,

it can be started by UP key. If the motor direction is clockwise, it can be started by DOWN key. After

starting, the interface will display the current speed.

SET

UP DOWN

MODE

SHIFTSHIFT

SHIFT

5.2.5.5 Operation flowchart of inertia identification

Press MODE key to the auxiliary function mode. Press UP/DOWN key to the menu, and

press SET key to the interface. The interface will display . Press SET key to start the

inertia identification. After finishing, the result will be displayed for about 3 seconds and

saved automatically. It will return to eh parameters after displaying for about 2 seconds.

SET

Delay 3s

Delay 2s

MODE

INVT SV-DA200-0R7-2 User Manual
