18. Look through the microscope and swipe over the quartz-block
end-face on the fiber connector with a light pressure.

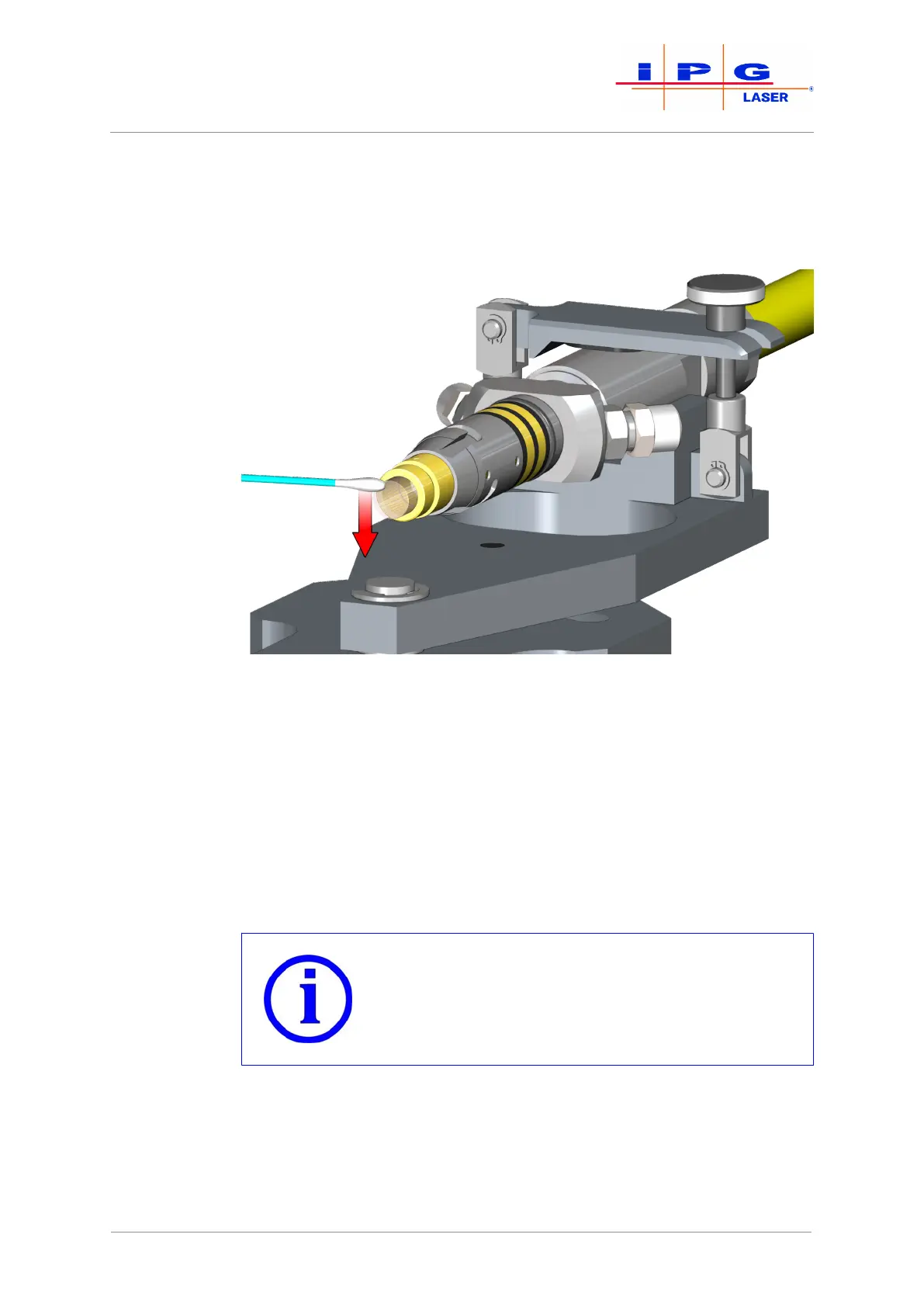

Figure72: Cleaning the quartz-block end-face
19. After 20 seconds at most, replace the cleaning stick if the cleaning
is to last longer.
20. Clean the protective conduit with compressed air outside of the
cleaning station and screw this back onto the fiber connector once
the cleaning of the quartz-block end-face is completed. Do not
touch the quartz-block end-face in the process.
21. Check the quartz-block end-face again for impurities. If necessary,
repeat the cleaning process.
The cleaning can be stopped at any time if the clean-
ing result is satisfactory.
22. If the quartz-block end-face is clean, remove the fiber connector
from the microscope and take this to the optics immediately. En-
sure that the quartz-block end-face is facing downwards during
the process.
23. Remove the protective cap from the optics.
