 | Delivery and transport
40
YLS-K
WARNING
Risk of injury from falling of the product
Incorrect use of the eye bolts can result in the load
falling during transport of the product.
ð Ensure that the suspension angle is at least 60°
while lifting with a crane.
ð Ensure that the eye bolt is completely screwed
in, level and resting fully against the contact
surface.
ð Ensure that the eye bolt is loaded in the ring
plane and not by horizontal pull.

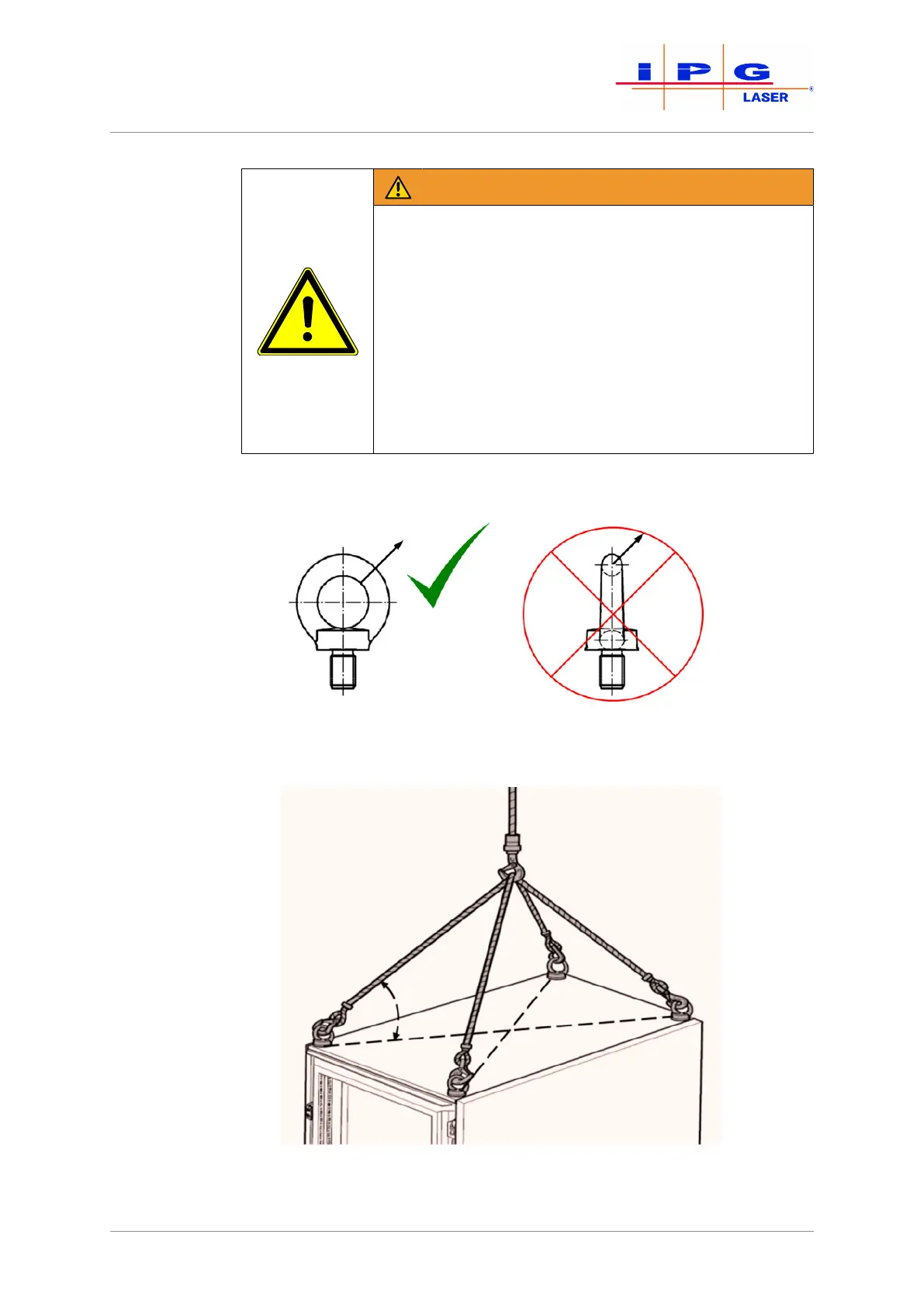

Figure14: Tensile load on the eye bolt
Figure15: Suspension angle during crane transport
