Page 13

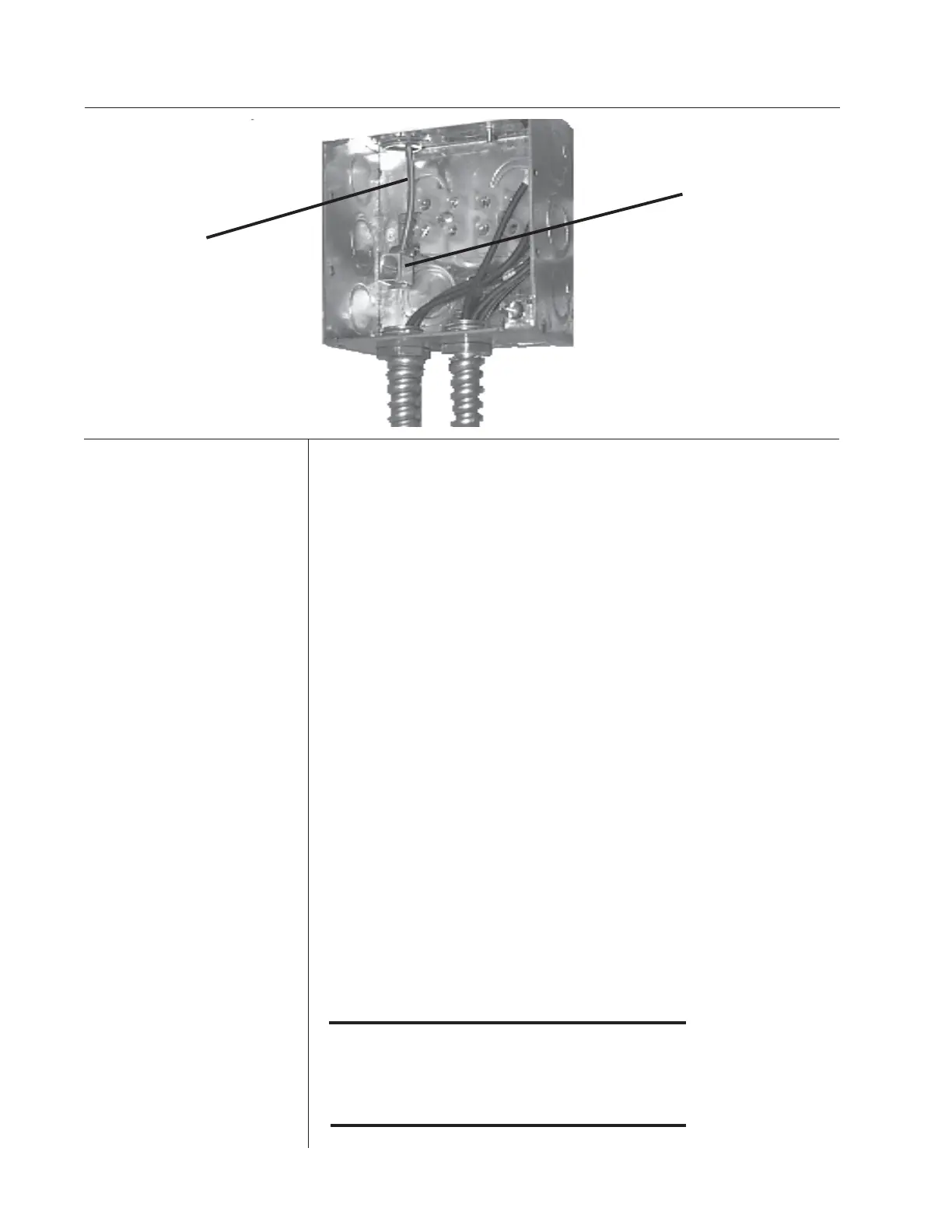

Grounding Instructions (Illustration)
Dryers must be electrically grounded by a separate #14 or larger
green wire from the grounding terminal within the service connection
box to a cold water pipe, or through the fourth green wire properly
grounded and connected to the grounding terminal. In all cases, the
grounding method must comply with local electrical code
requirements; or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code,
CA C22.1.
See wiring diagram furnished with dryer. Your Cissell dryer is
completely wired at the factory and it is only necessary for the
electrician to connect the power leads to the wire connectors within
the service connection box on the rear of the dryer. Do not change
wiring without consulting factory as you may void the factory
warranty. Do not connect the dryer to any voltage or current other
than that specified on the dryer rating plate. (Wiring diagram is
located on rear wall of dryer.)
ELECTRICAL
CONNECTIONS
CAUTION: Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operations.
Verify proper operation after servicing.
ELECTRICAL CONTROLS
SERVICING
«Attention. Lors des opérations d’entretien
des commandes, ètiqueter tous les fils avant
de les dèconnecter. Toute erreur de câblage
peut être une source de danger et de panne»
Green
Grounding Wire
Grounding
Terminal
