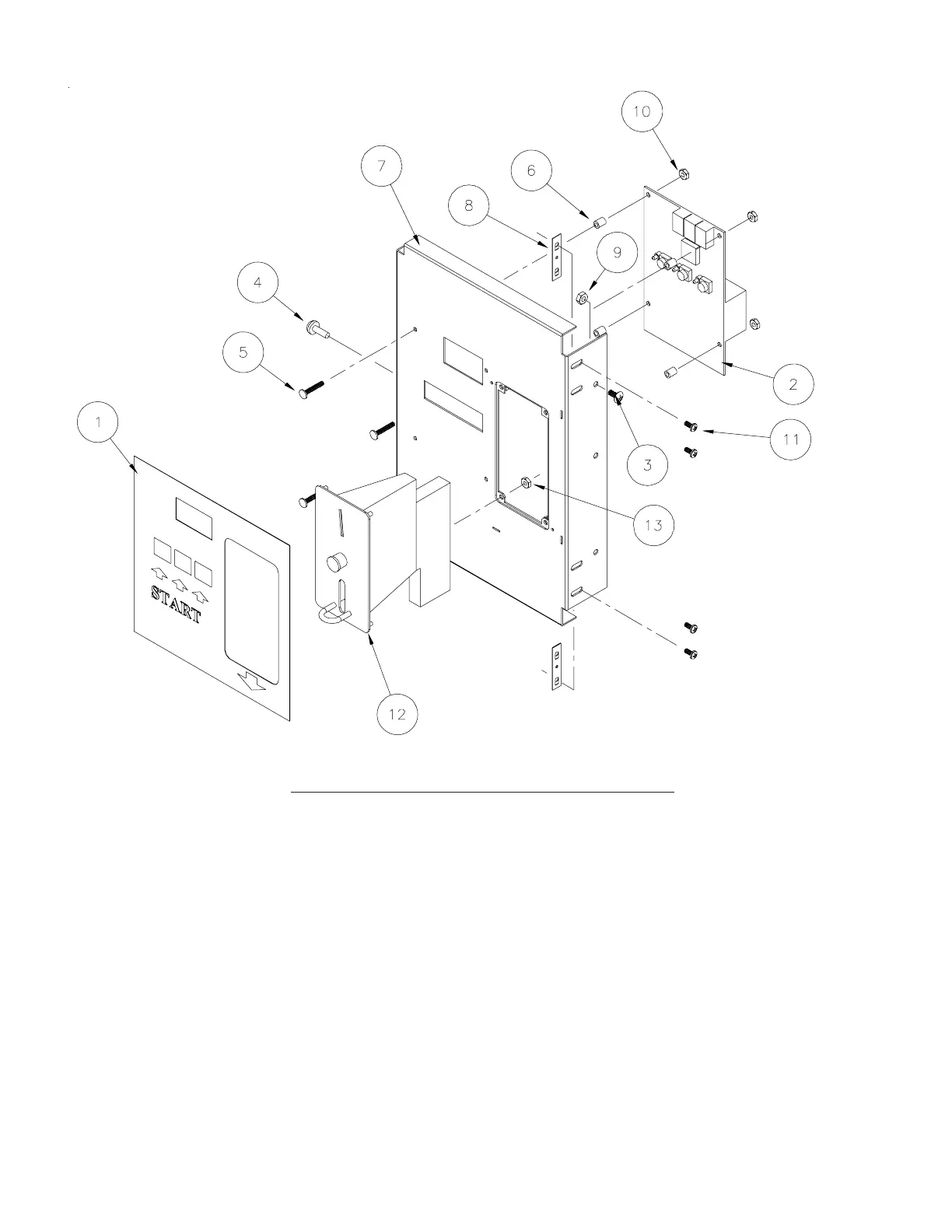

DX3 COIN CONTROL PANEL ASSEMBLY
Ref.
No. Part No. Description
TU15262 - Complete Assembly
1 254/00033/00 Overlay
2 254/00066/00 Control board
3 M262 #8-32 Screw
4 SB-00915-0 #10-16 Screw
5 TU12253 #6-32 Stud
6 TU14701 Nylon spacer
7 TU15414 Control panel W/A
8 TU1771 Tinnerman nut
9 TU3266 Nut, hex. brass #8-32
10 TU3400 #6-32 Hex nut
11 TU9524 #6 S.M. Screw
12 TUD0336 Coin drop
13 TUD0367 #5-40 Nut
To Next Page
