Page 40
Ref.
No. Part No. Description
TU15110 Complete door assy
1 CA-13218 Catch pin
2 TU15536 Magnet - read switch
3 MD-00360-0 Gasket - door rim gasket
4 SB-00852-0 Washer 1/4" external starluck
5 SB-00921-0 Screw 1/4"-20 round head
6 TU15073 Door hinge spacer
7 TU15076 Door rim w/a
8 TU15107 Door glass
9 TU15108 Door glass gasket
10 TU4840 #10-32 Crown nut

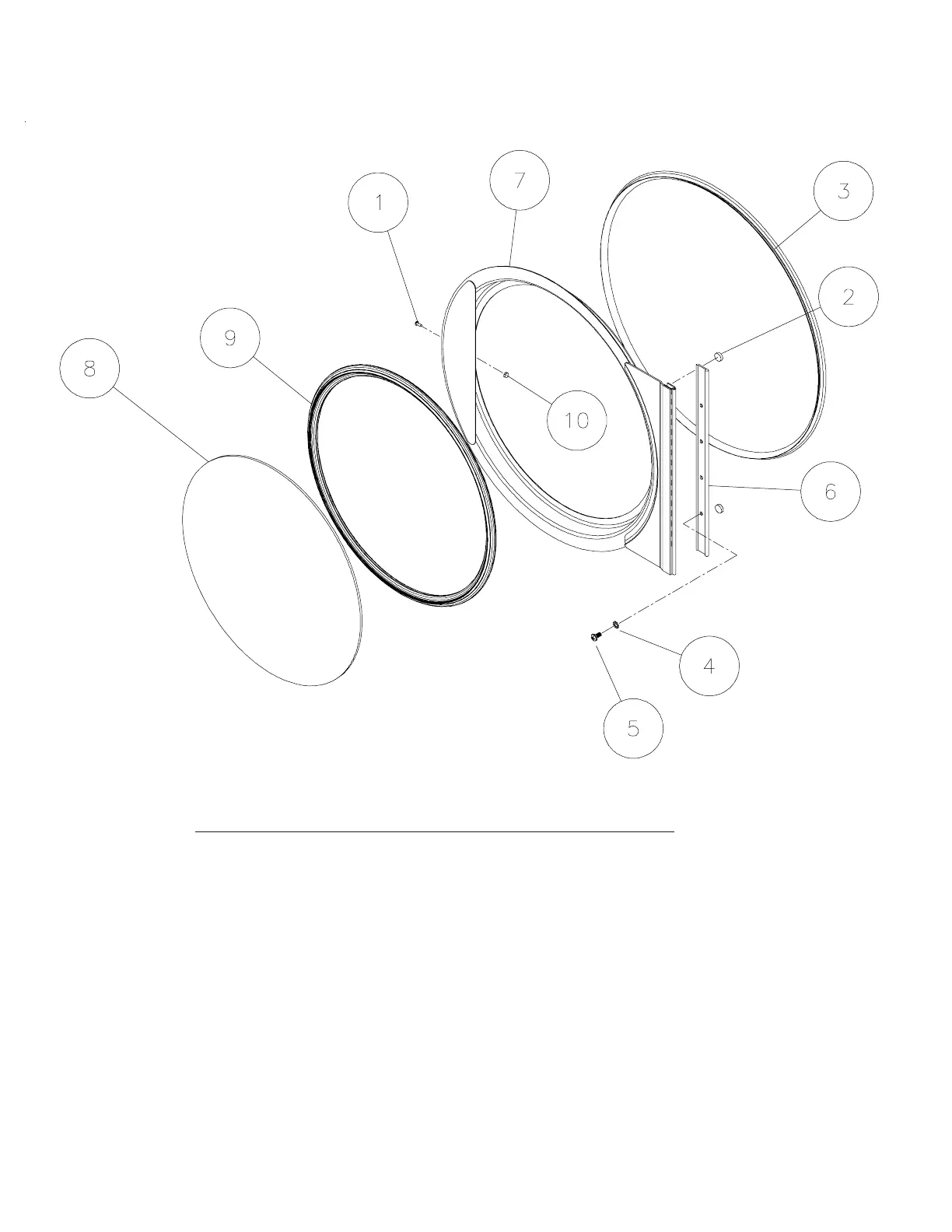

DOOR ASSEMBLY
