Page 50

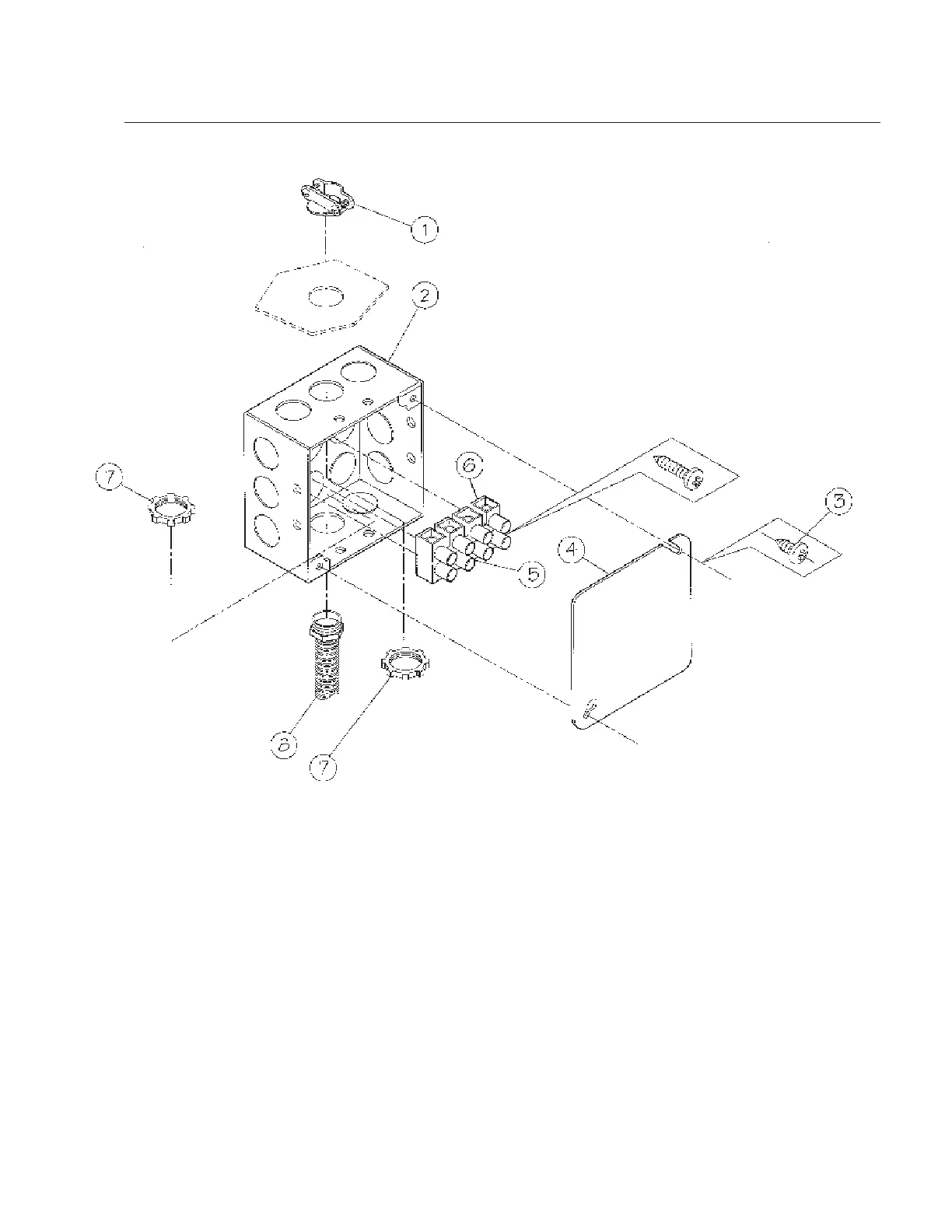

PARTS - TUMBLER ASSEMBLY
POWER TAP
Ref. Part
No. No. Description
1 C1365 REGAL CONNECTOR
2 SC517 J-BOX
3 TU7733 SELF TAP SCREW
4 SC518 J-BOX COVER
5 TU14958 TERMINAL BLOCK
6 TU14959 TERM. BLK END/GRND
7 C170 BUSHING
8 CFA2400 FLEXABLE CONDUIT
