Page 51

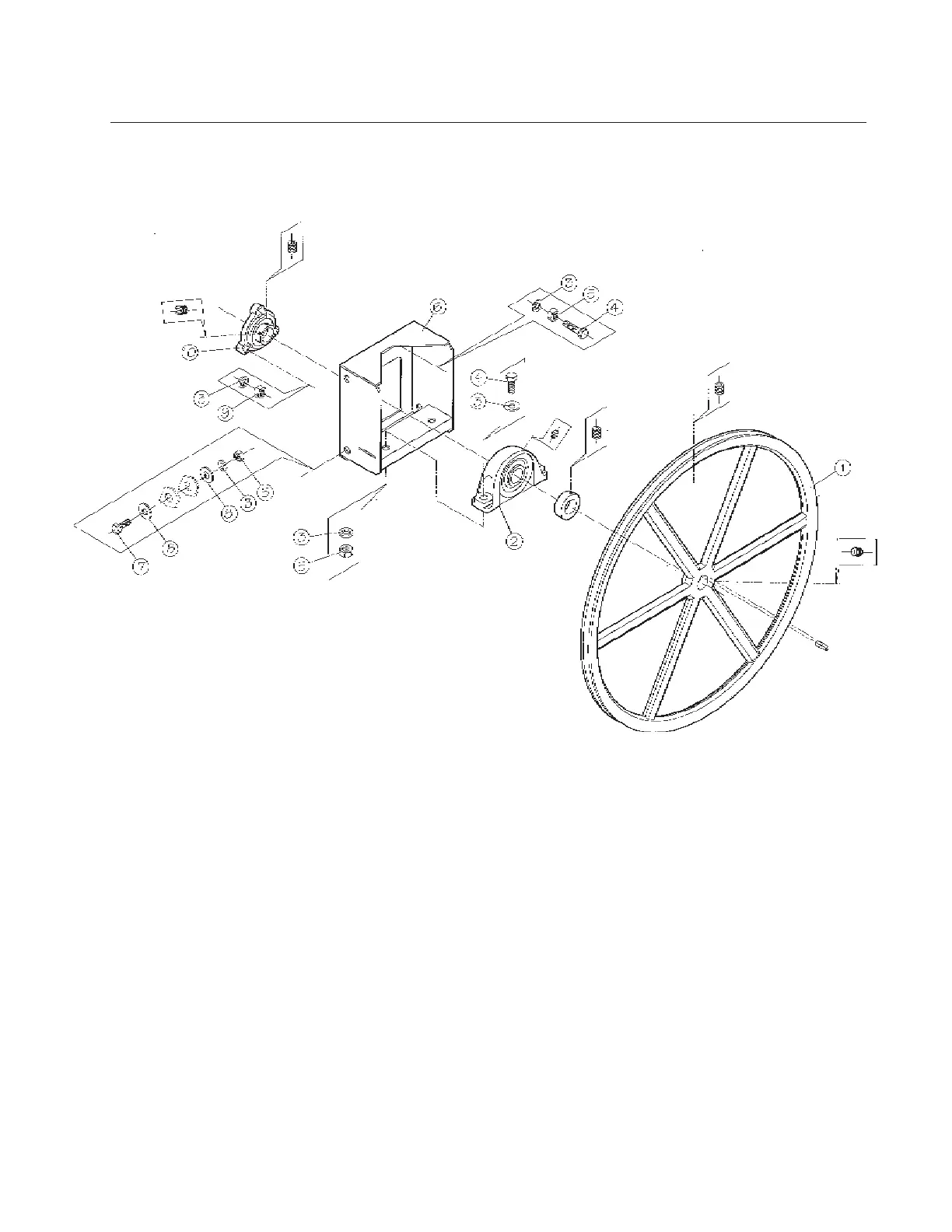

PARTS - TUMBLER ASSEMBLY
BASKET SUPPORT
Ref. Part
No. No. Description
1 TUD0076 PULLEY 18” CAST IRON
TU5446 PULLEY 18” PRESSED STEEL
2 TU10676 BEARING, PILLOW BLOCK
3 OP251 WASHER, 1/2” FLAT
4 TU2195 1/2” BOLT
5 OP233 NUT, 1/2”
6 TUD0411 BEARING BOX ASSY
7 RC347 CAP SCREW 1/2-13
8 TU2883 WASHER 1/2” FLAT
9 TU13372 NUT, 1/2-13 W/NYLON
10 TU10002 FLANGE BEARING
