IPSO IPD30STG - DMP CONTROL-COIN; PARTS - TUMBLER ASSEMBLY

Page 44

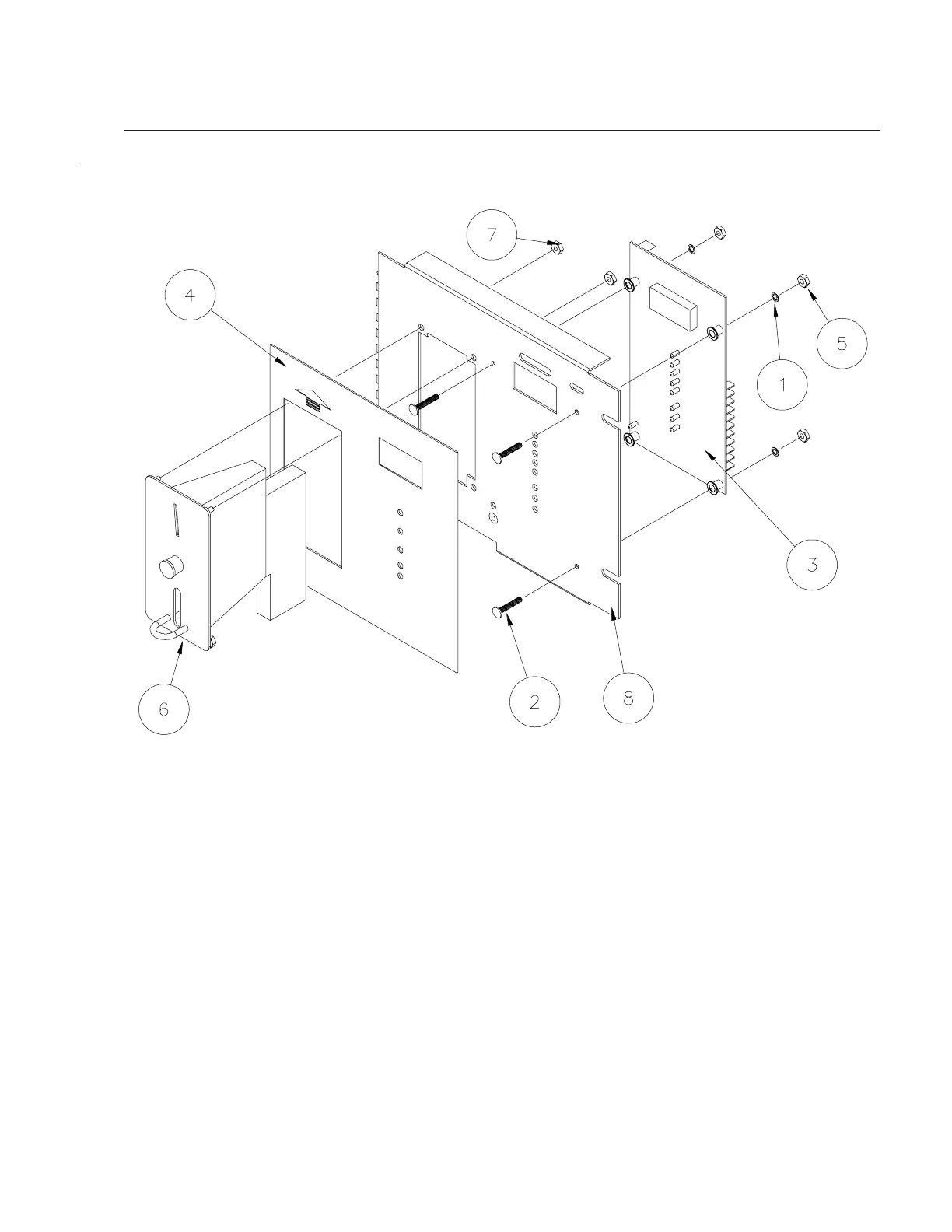

PARTS - TUMBLER ASSEMBLY
DMP CONTROL-COIN
Ref. Part
No. No. Description
1 M270 #6 LOCK WASHER
2 TU12253 STUD, #6-32
3 TU14404 CONTROL (DMP)
4 TU14451 OVERLAY (UPPER)
TU14406 OVERLAY (LOWER)
5 TU3400 NUT, #6-32
6 TUD0336 COIN DROP
7 TUD0367 #5-40 NUT
8 TUD0452 ASM, DMPC PANEL (UPPER)
TUD0453 ASM, DMPC PANEL (LOWER)
