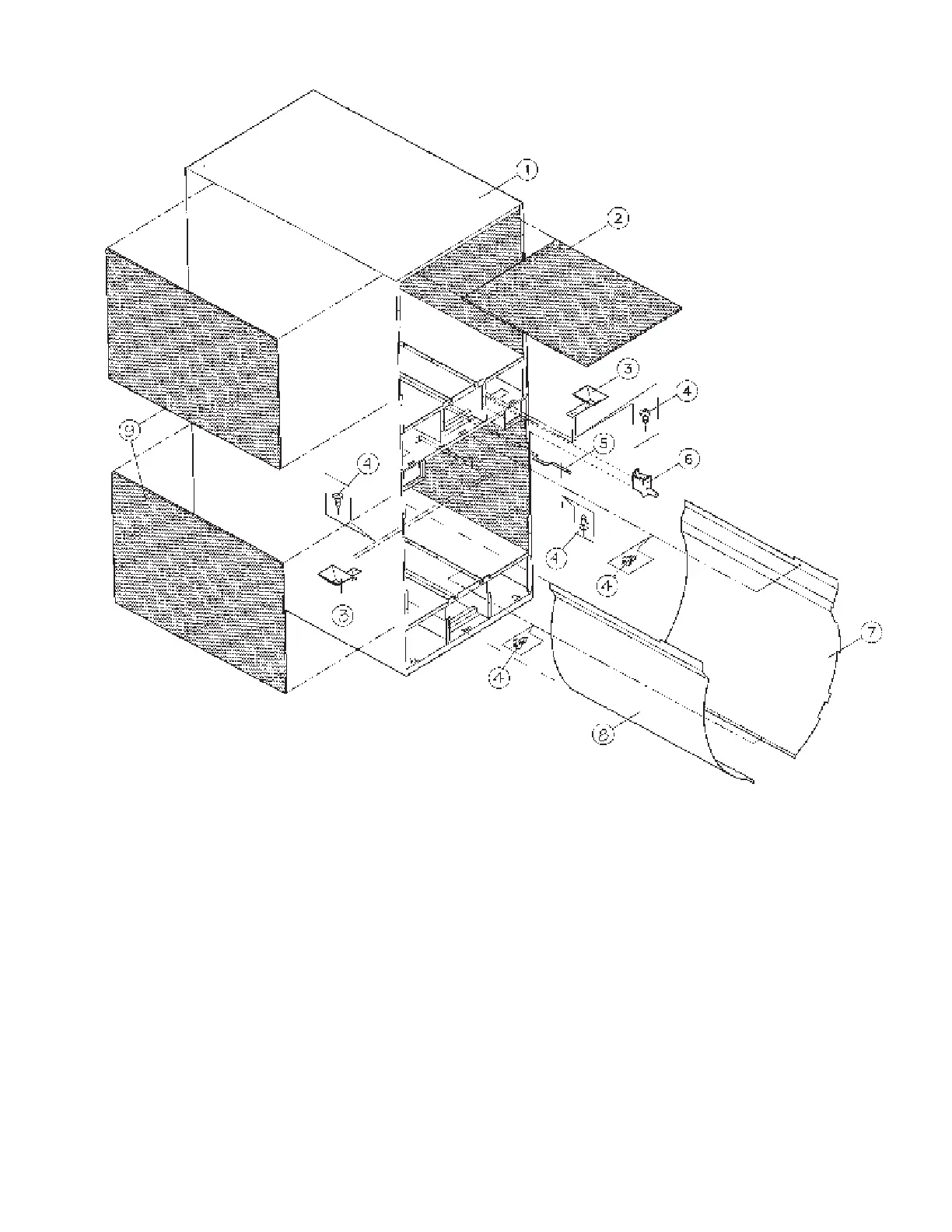

IPSO IPD30STG - Tumbler Assembly

Page 37
Ref. Part
No. No. Description
1 TUD0083 JACKET WELDED ASS’Y
2 TUD0283 INSULATION, TOP
3 TUD0375 COIN CHUTE
4 TU7733 SCREW SELF TAP
5 TUD0258 SPRING RETAINER
6 EA-00650-0 SWITCH, LINT DRAWER
7 TUD0241 SWEEP SHEET LR
TUD0239 SWEEP SHEET UR
8 TUD0240 SWEEP SHEET LL
TUD0134 SWEEP SHEET UL
9 TUD0282 INSULATION SIDE
