IPSO IPD30STG - THERMOSTAT ASSY; PARTS - TUMBLER ASSEMBLY

Page 43
PARTS - TUMBLER ASSEMBLY

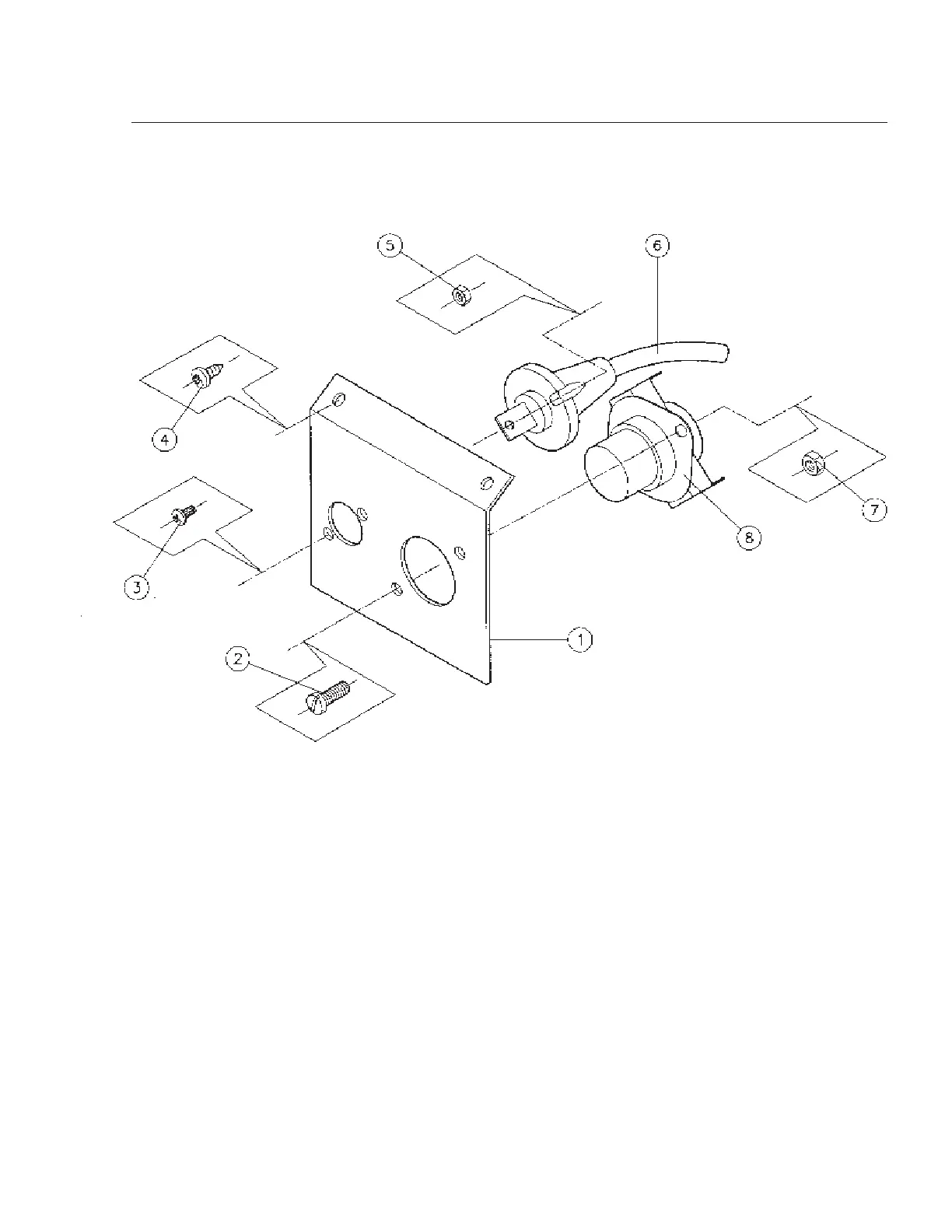

THERMOSTAT ASS’Y
Ref. Part
No. No. Description
1 TUD0259 THERMOSTAT BRACKET
2 TU7733 SELF TAP SCREW
3 SB-00952-0 SCREW 6/32-3/8
4 TU7733 SELF TAP SCREW
5 TU3400 NUT, HEX #6-32
6 TU11991 THERMOSTAT-CONTROL
7 TU3266 NUT, BRASS-HEX #8-32
8 TU3240H SAFETY THERMOSTAT
