Page 56
PARTS - TUMBLER ASSEMBLY

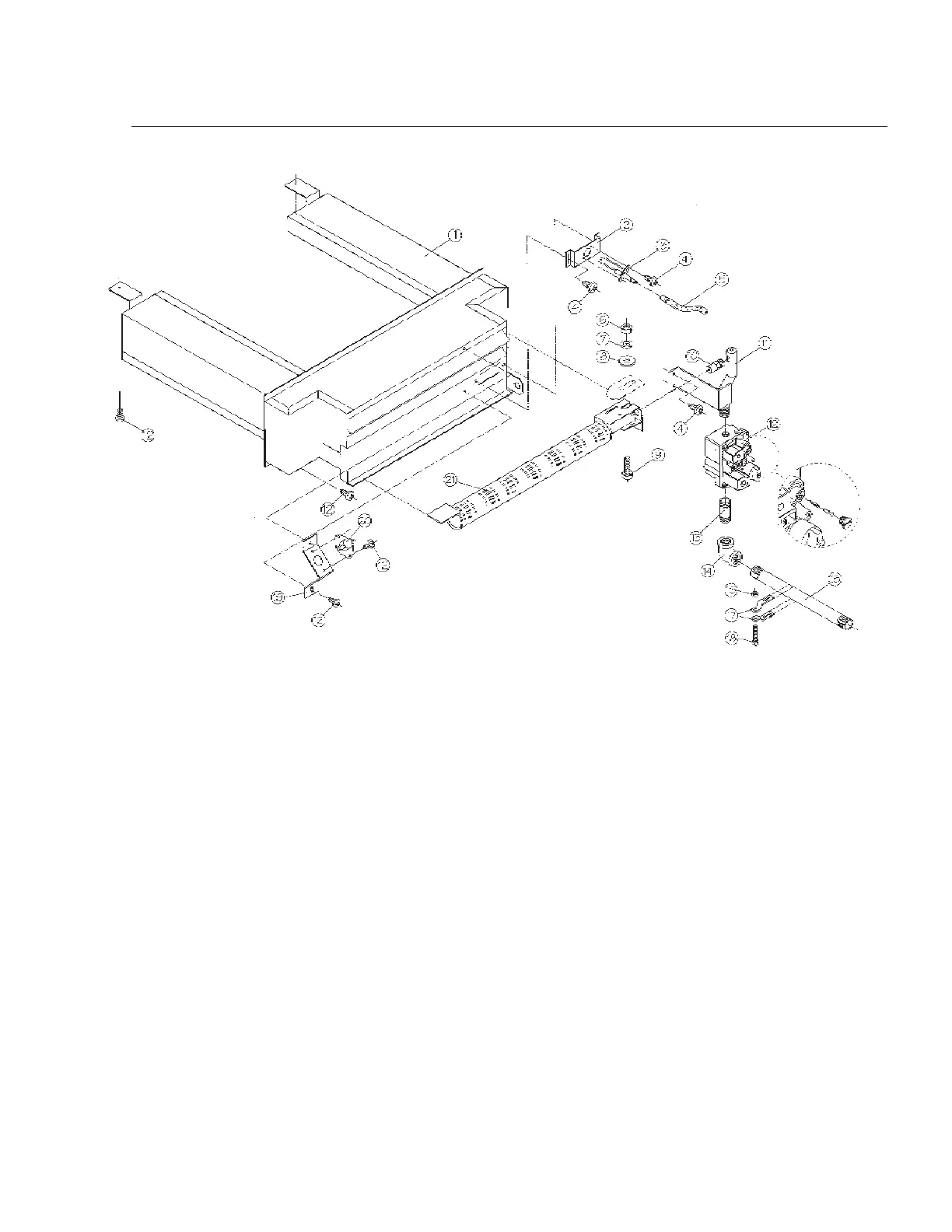

BONNET ASSEMBLY
Ref. Part
No. No. Description
1 TUD0162 BONNET WELDED ASS’Y
2 TUD0242 IGNITOR MOUNTING BRACKET
3 GA-00764-0 IGNITOR ELECTRODE
4 TU7733 SCREW SELF TAP
5 GA-00803-0 HI-VOLTAGE CABLE
6 TU4934 NUT 1/4-20
7 TU2846 LOCK WASHER 1/4
8 TU2847 WASHER 1/4
9 CB36 HEX HD SCREW 1/4-20
10 TU3539 ORIFICE
11 GA-00774-0 PIPE MANIFOLD
12 TU14178 GAS VALVE NG
TU14177 GAS VALVE LP
13 OP290 NIPPLE PIPE-1/2X2
14 390501053 90 DEG ELBOW
15 390401013 NIPPLE PIPE 1/2-7
16 FB185 NUT #10
17 TU1815 PIPE CLAMP
18 TU3486 BOLT #10
19 TUD0173 HI LIMIT MOUNTING BRKT
20 EA-00243-0 HI-LIMIT THERMOSTAT
21 TU13502 BURNER 50mm
