IPSO IPD30STG - DX3 CONTROL PANEL ASSEMBLY

Page 47

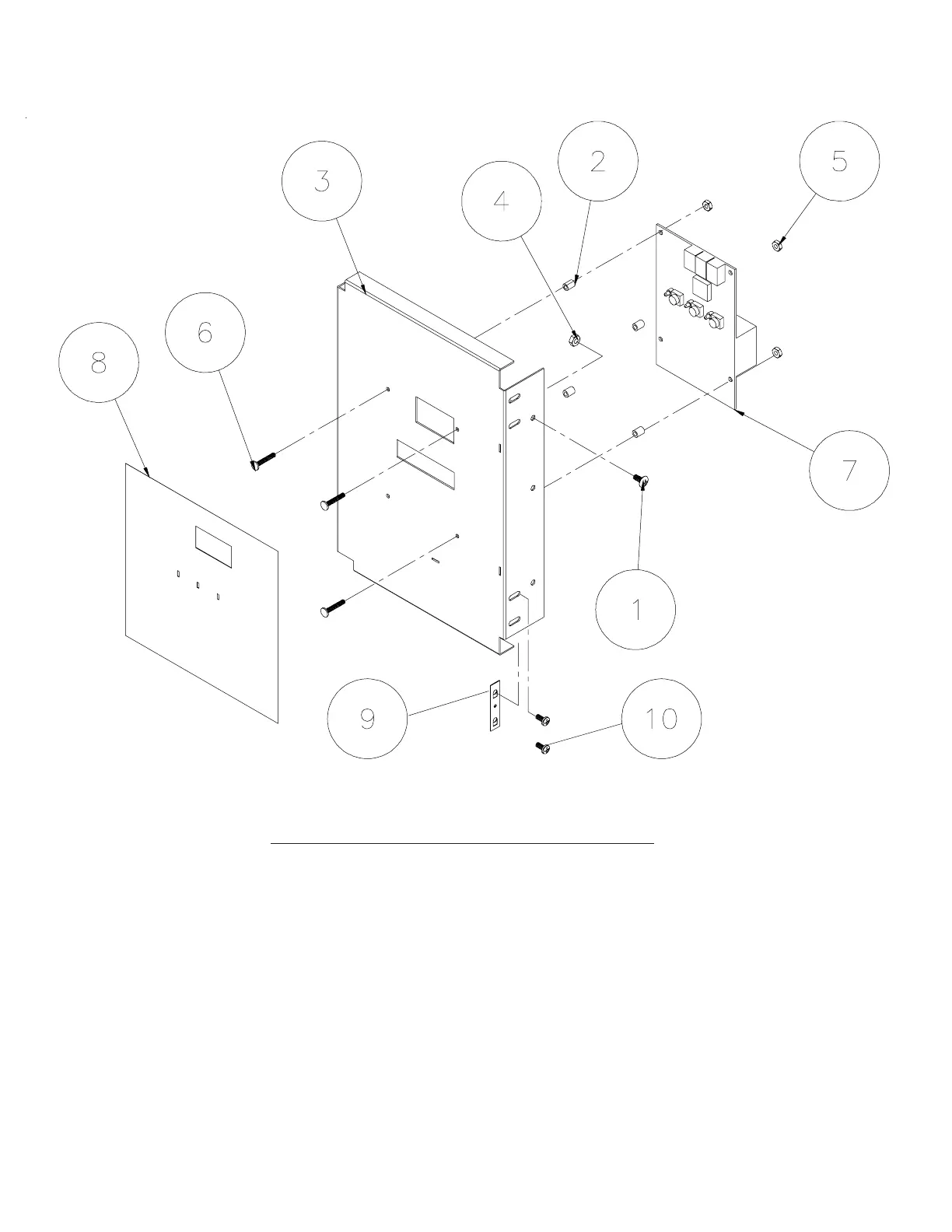

DX3 CONTROL PANEL ASSEMBLY
Ref.
No. Part No. Description
TU15260 - Complete Assembly
1 M262 #8-32 Screw
2 TU14701 Nylon spacer
3 TU15259 Control panel
4 TU3266 Nut, hex. brass #8-32
5 TU3400 #6-32 Hex nut
6 TU12253 #6-32 Stud
7 254/00066/00 Control board
8 254/00069/00 Overlay
9 TU1771 Tinnerman nut
10 TU9524 #6 S.M. Screw
