PARTS - TUMBLER ASSEMBLY

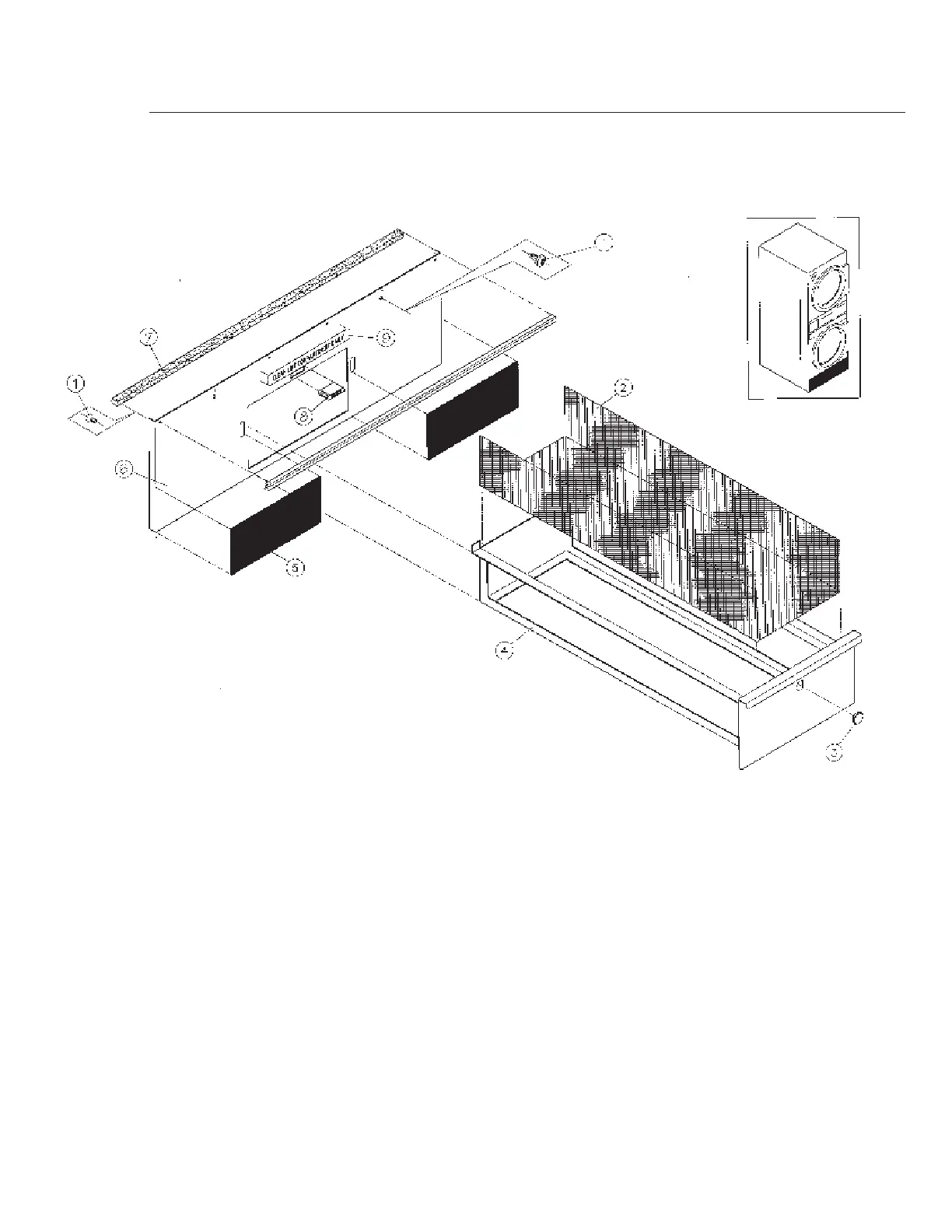

LINT DRAWER ASS’Y
Ref. Part
No. No. Description
1 SB-00951-00 SCREW, #8
2 TUD0256 MESH SCREEN
3 TUD0412 PLUG-DOUBLE-D(NO LOCK)
3A LA-00121-0 LOCK
4 TUD0279WH FRAME, DRAWER(NO LOCK)
4A TUD00048WH FRAME, DRAWER(LOCKING)
5 TUD0198 KICK PLATE
6 TUD0249WH COVER PLT W/A
7 TU2853 GASKET
8 TUD00366 MAGNET SNAP CATCH
9 TU7858 LABEL, INSTRUCTIONS
