Inspection and Installation
Output Power Derating Characteristics with AC Input Voltage
6kW 1kW 2kW 2.3kW 3.5kW 6kW
12kW 2kW 4kW 4.6kW 7.1kW 12kW
Connecting the Power Cord
Suggestions for phase assignment:

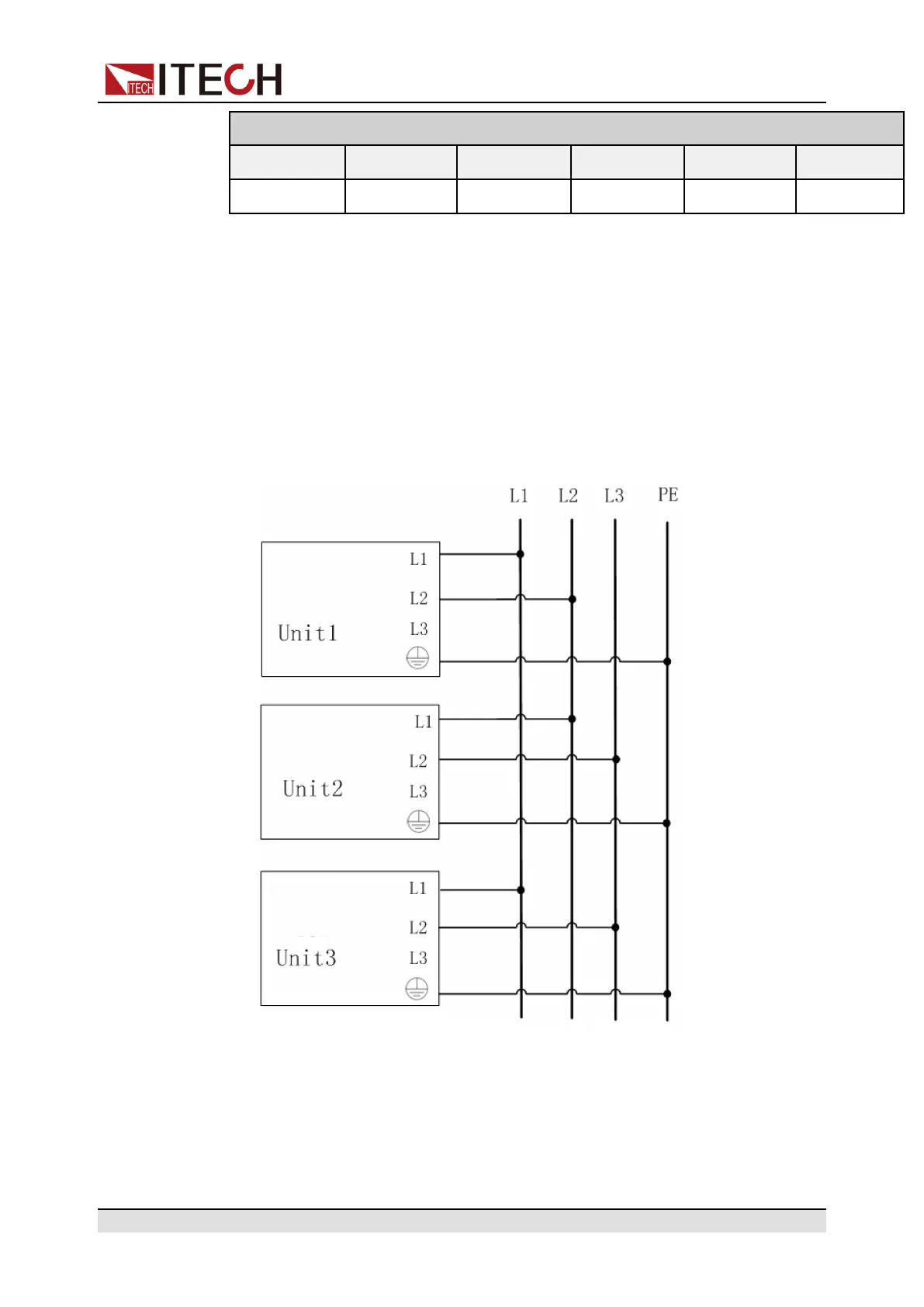

• When a single instrument is connected to the two phases of the three-phase
power supply terminal, please take care for balanced current distribution on
three phases. In case multiple units are connected to the same main AC dis-
tribution box. It is recommended to follow the suggestion connection dia-
gram as below.
• When the instrument is connected to the three phases of the three-phase
power supply terminal, there is no need to pay attention to the current shar-
ing problem, just connect it directly. The wiring diagram is as follows:
