Power Supply Function
t: Time (in ms)
U: Voltage (in V)

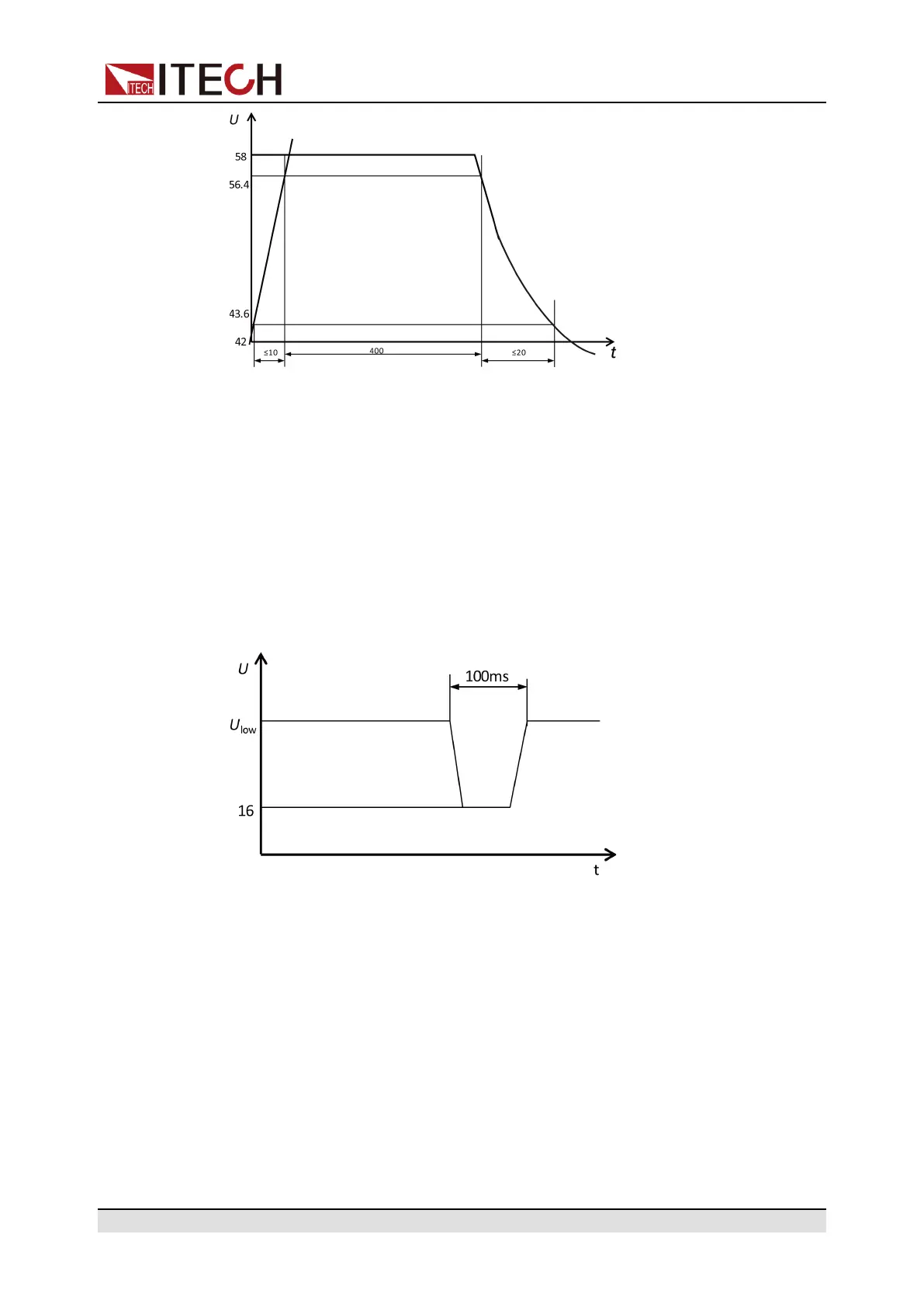

Supply Voltage Transient Drop
Simulate the affect from short circuit when fuse element of another circuit is
melt. Detect the function status of the DUT at transient drop of Voltage.
After turning on [On/Off] and triggering the waveform output, when the given
test pulse is applied at all input terminals of the DUT, the rise and fall time be-
tween U
low
and 16V level shall not be longer than 100ms.
t: Time (in ms)
U: Voltage (in V)
Reset Performance at Transient Drop of Voltage
Detect the reset performance of the DUT at different Voltage drops. Applicable
for devices with reset function (for example, device installed with one or several
micro controllers) .
After turning on [On/Off] and triggering the waveform output, the instrument will
apply test pulse and detect the reset performance of the DUT, as shown in the
figure below.
