Quick Reference
System Rzero
Used to control whether the voltage is quickly zeroed.
• Off: No
• On: Yes
System Info
View the system information. For details, see 5.14 View the System In-
formation (System Info).
1.9 Options Introduction
The IT6000C series Bi-directional Programmable DC Power Supply supports
the following two types of accessories, the details are as below:
• IT-E166: Interface card for GPIB communication. When users need to use
GPIB communication, they can choose to purchase this accessory.
For details, see 2.5.4 GPIB Interface (Optional).
• IT-E167: Interface card that includes RS-232 communication interface, ex-
ternal analog and other functions.

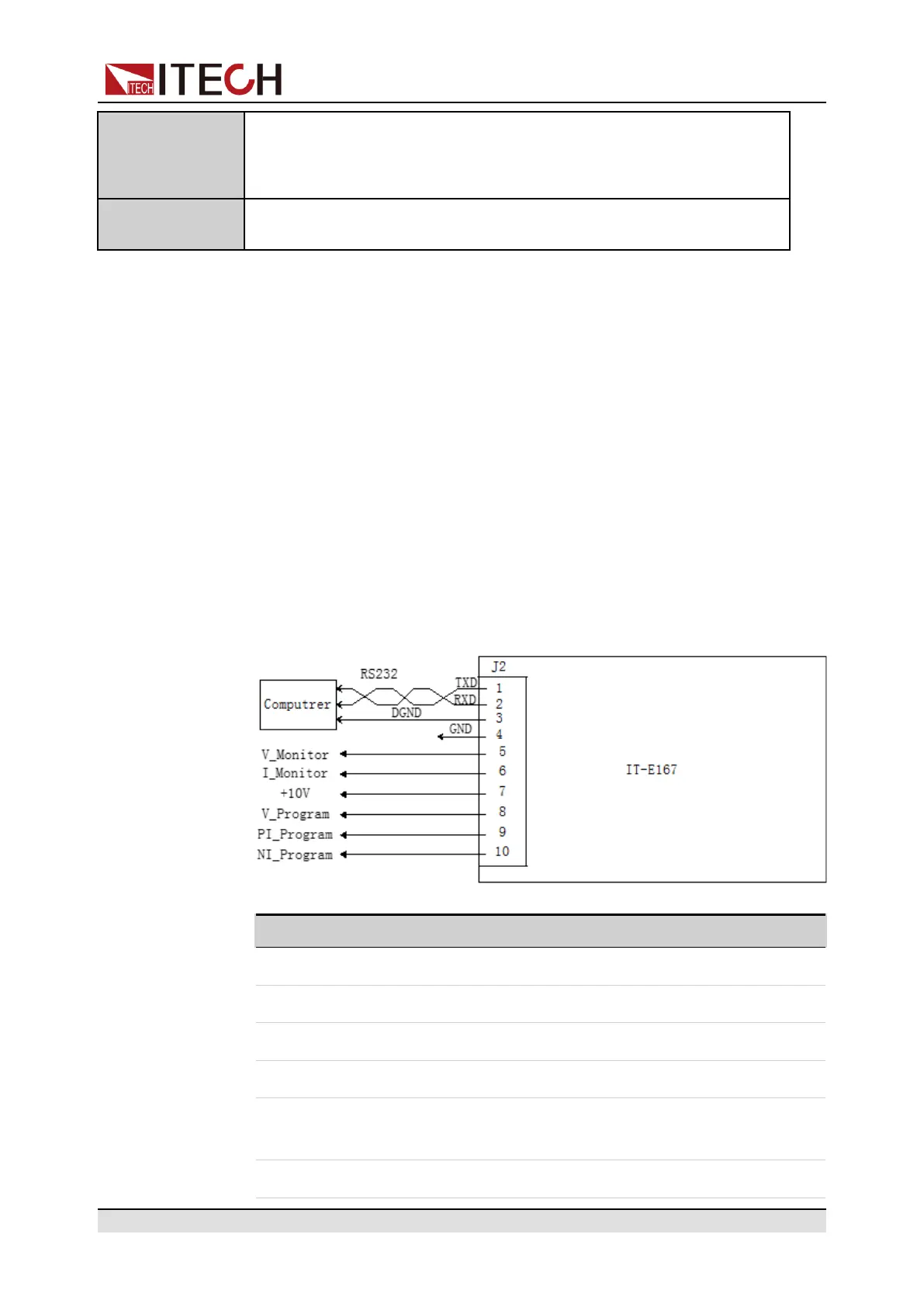

The accessory has a total of 10 pins, and the details of each pin are as
follows:
Pins Description
1 RS-232 TXD pin for transmitting data.
2 RS-232 RXD pin for receiving data.
3 RS-232 DGND pin for grounding.
4 Ground terminal, that is, the negative terminal of pin 5 to pin 10.
5 Voltage monitoring terminal. It can output a voltage of 0 to 10V to
monitor the output voltage from 0 to full scale.
6 Current monitoring terminal.
