Panel function introduction
Copyright © Itech Electronic Co., Ltd. 34
Procedure:
Take example of IT8702, use expanded cable to connect mainframe and
expand interface of extended frame. Enable expand function in the menu of
IT8702 mainframe by pressing + , select “Expand module”, choose
ON.

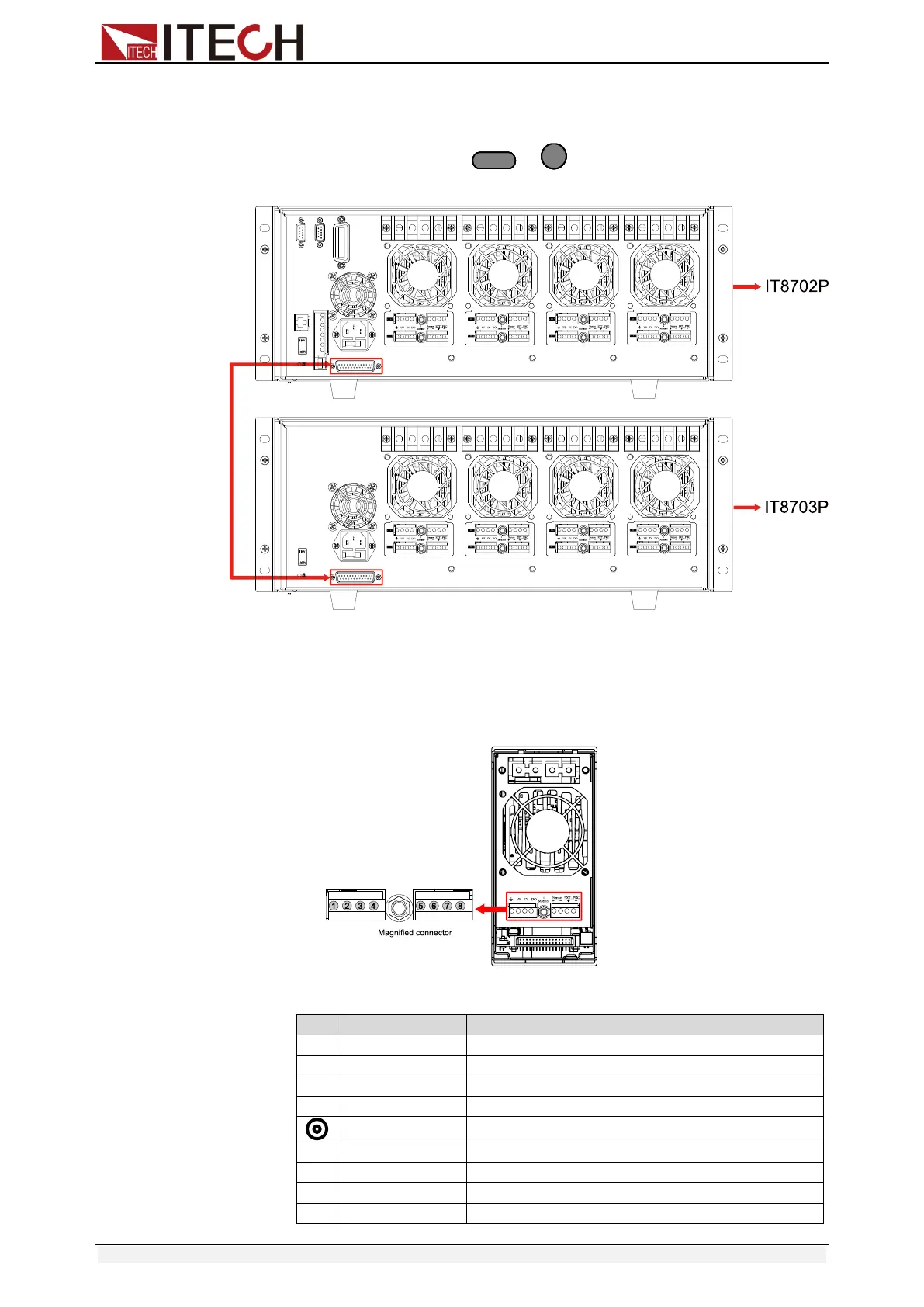

Figure 3-8 Expand connections
3.6 Controlling link
There is an 8-pin connector on every module’s rear panel. The following will
introduce in detail the 8 pins’ specific functions.
Fig 3-9 Terminals on single-channel module rear panel
No.
Pin
Description
1
GND
Ground
2
VF
Voltage fault indication terminal
3
DI
Digital input terminal
4
DO
Digital output terminal
I Monitor
Current monitoring output
5
Sense +
Voltage remote measuring terminal(+)
6
Sense -
Voltage remote measuring terminal(-)
7
Ext_PRG+
External analog controlling terminal(+)
8
Ext_PRG-
External analog controlling terminal(-)
