Operations introduction
Copyright © Itech Electronic Co., Ltd. 41
current accuracy of car chargers, which prevents over-current protection of
car chargers.

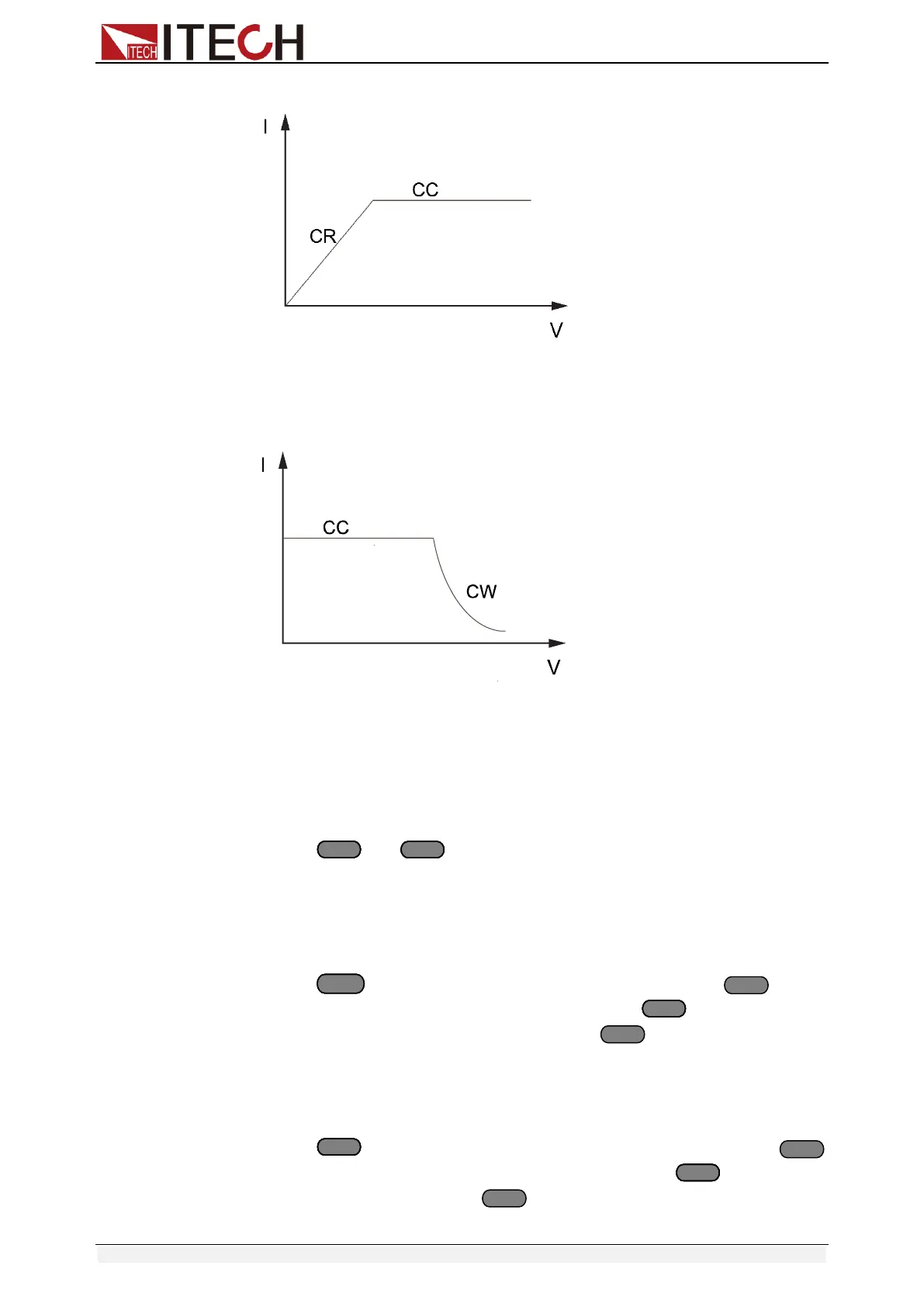

⚫ The CW+CC mode is often used to UPS battery test, simulate the current
change when the battery voltage is decaying. It can also be used to
simulate the characteristics of the inputs of DC-DC converters and
inverters.
4.3.6 Operations
The following will show you how to set operation mode on front panel. Take CC
mode as an example:
1. Power on the electronic load
2. Press or keys to select the channel to be edited, such as
channel 1
CH01 CC OFF
Vdc=0.0000V
Adc=0.0000A
Wdc=0.00W
3. Press key to enter the channel setup menu, press key to
enter the mode selection menu <Mode>, press key to select the
mode CC/CV/CR/CW，such as CC，press key to confirm.
CH01
Mode=CC
RANGE=HIGH
Iset=9.000A
4. Press key to enter range selection menu <Range>, press
key to enter the mode selection menu <Mode>, press key to select,
such as <low range>, press key to confirm.
CH01
