Iteris VersiCam - Camera Processor Unit Mounting

8

3.1.1 Camera Processor Unit Mounting
The physical camera mounting is done using a camera bracket that is banded to the luminaire arm or
canbemountedonthemastarmusingasuitableextensionbracket.



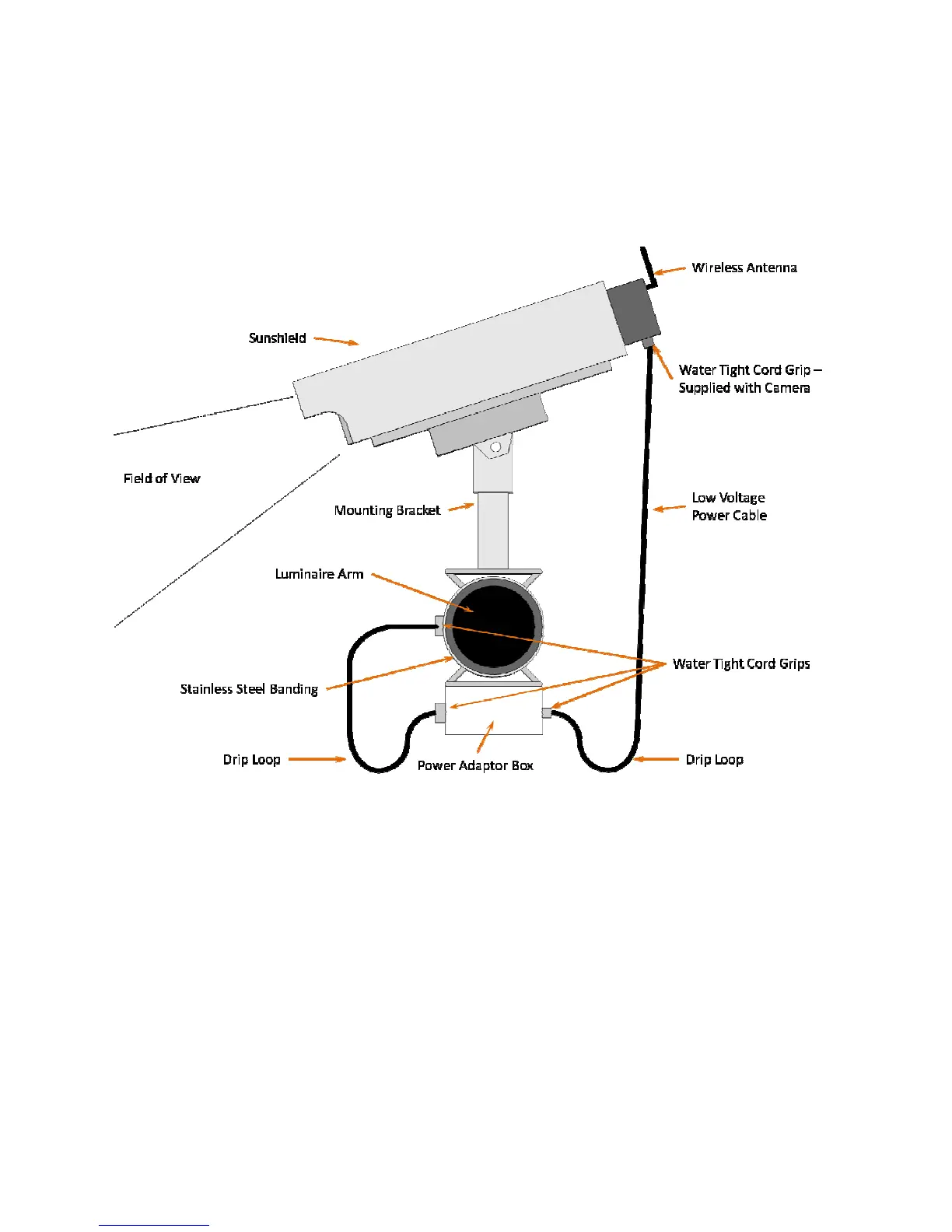

Figure3.1.1(a)
One possible camera mounting location is up on the luminaire arm centered over the field of
 view,
however, it is not always possible to use this mounting. Camera mounting is critical to providing the
properfieldofview.
Note:Duringthei nstallationofthecamerasitisimportanttonotetheserialnumberofthecamerafor
eachapproach.Theserialnumberwillbeusedas
theinitialidentifierfornetworksetup.
Mount the camera bracket to the pole arm using stainless steel banding material. Do not use hose
clamps, they tend to loosen over time and may result in the camera moving and slipping onthe pole.
The luminare arm or signal mast arm are typical
 mounting locations. If you are unsure of the best
mountinglocationcontactyourlocalIterisdealerorcallIterisProductSupportforrecommendationson
optimalcameramountingforyourapplication.
