3.3.2 ICC-2W Module Wire Terminations
The other end of the multi‐core cable used to connect to the Base Station connects to the ICC‐2W. 
Carefully strip the multi cable outer jack back approximately 2 ½ inches (65mm), without nicking or
damagingtheinsulationonthewirepairsinside.Scoringtheouterjacketlightly
withasharpknifeand
bendingtheouterjacketsheathbackandforthuntilitpartsisthesafestmethod.Installthegroundlug
usingthemethoddescribedbelow.
InstallationofGroundingLug

The Scotchlok
TM
4460‐D Shield Connector is designed to make a stable and low resistance electrical
connectionbetweencommunicationcablesof .80"diameter orless(100pair,24 ga.andunder)anda
conductorsuchasastrap,wireorbraid.Thefollowing sectioncoversinstallingthegroundinglugonthe
cabinetside
ofthemulti‐conductorcable.A3/8”TerminalWrenchandTabbingShearsarerequiredfor
installation.


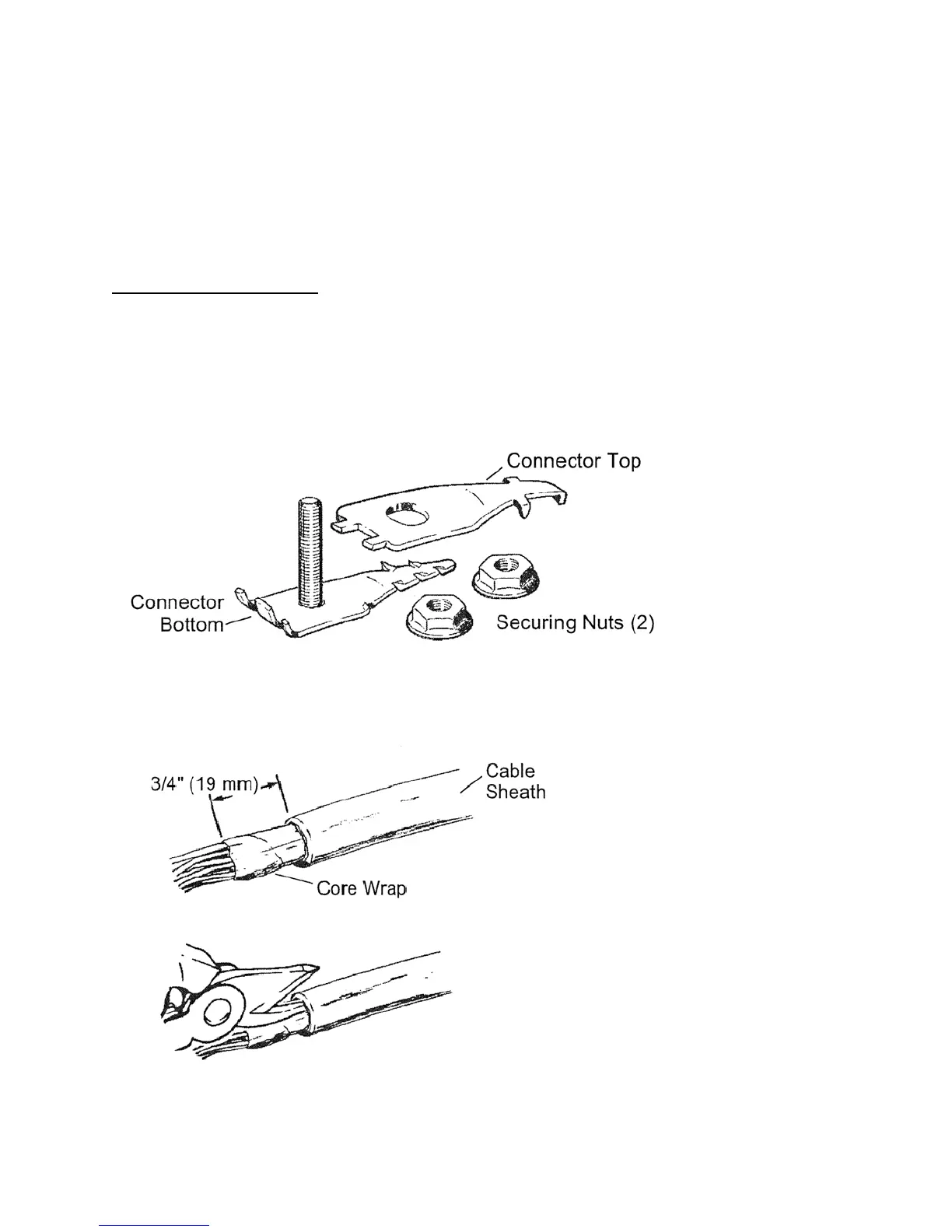

Figure3.3.2(a)ConnectorComponents

Figure3.3.2(b)CablePreparation.
