28

Note:Allcablesmustbetabbedwitha 1”(25mm)slitonthesideofthesheathoppositetheconnector, 
toeaseinsertionandtoavoidconductordamage.

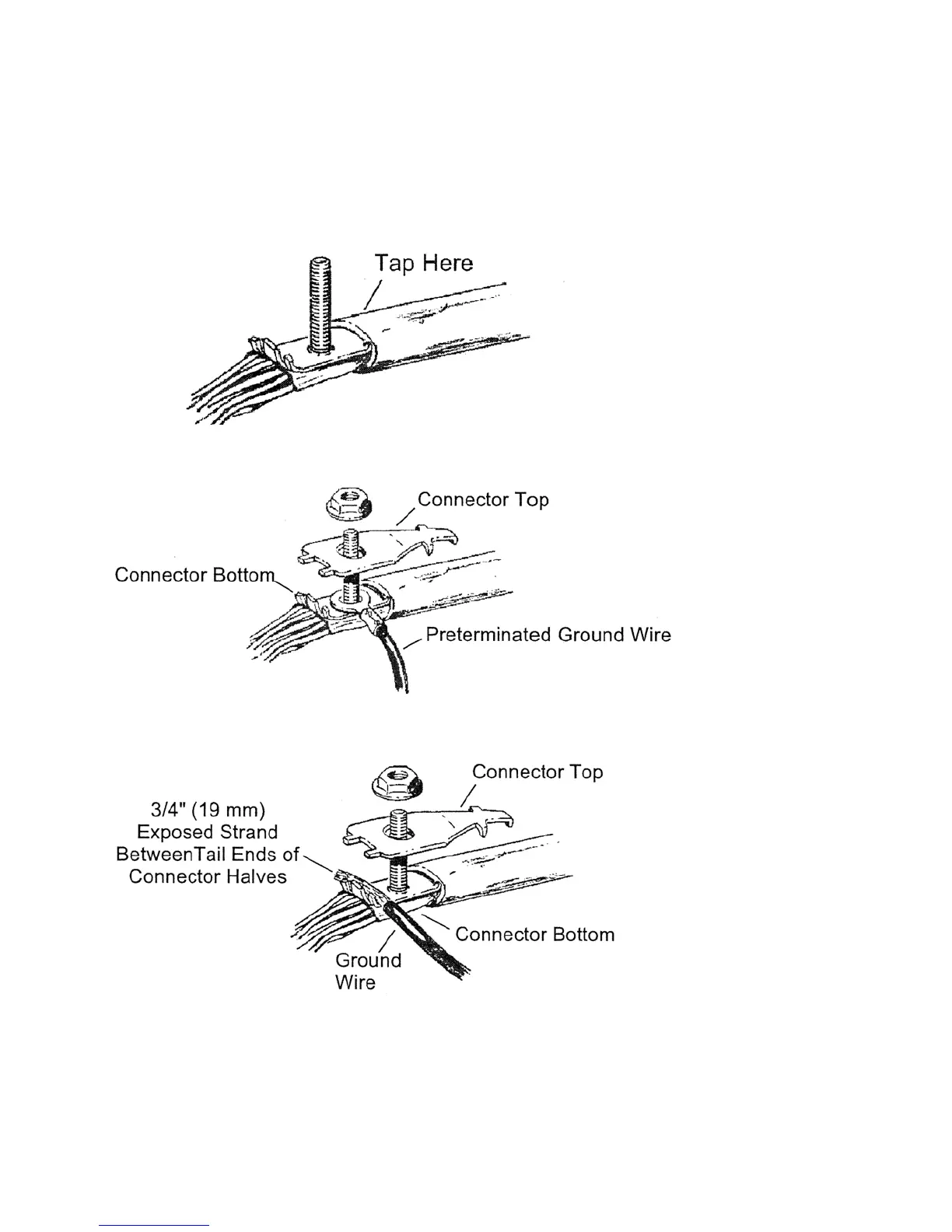

Insertconnec tor basebetweenshieldandcorewrap,seeFigure3.3.2(c),untiltheconnectorstopsmeet
outersheath.Tapsheathabove
connectorbasetosetconnectorteeth.

Figure3.3.2(c)

Figure3.3.2(d)PreterminatedGroundWire

Figure3.3.2(e)ExposedStrand
Note:Besurethattheinsulationofthegroundwireisnotpinchedbetweentheconnectorhalves.
