If bond braid or additional grounding or bonding hardware is used, install it above the first nut and
secureitwiththeadditionalnut,seeFigure3.3.2(f).

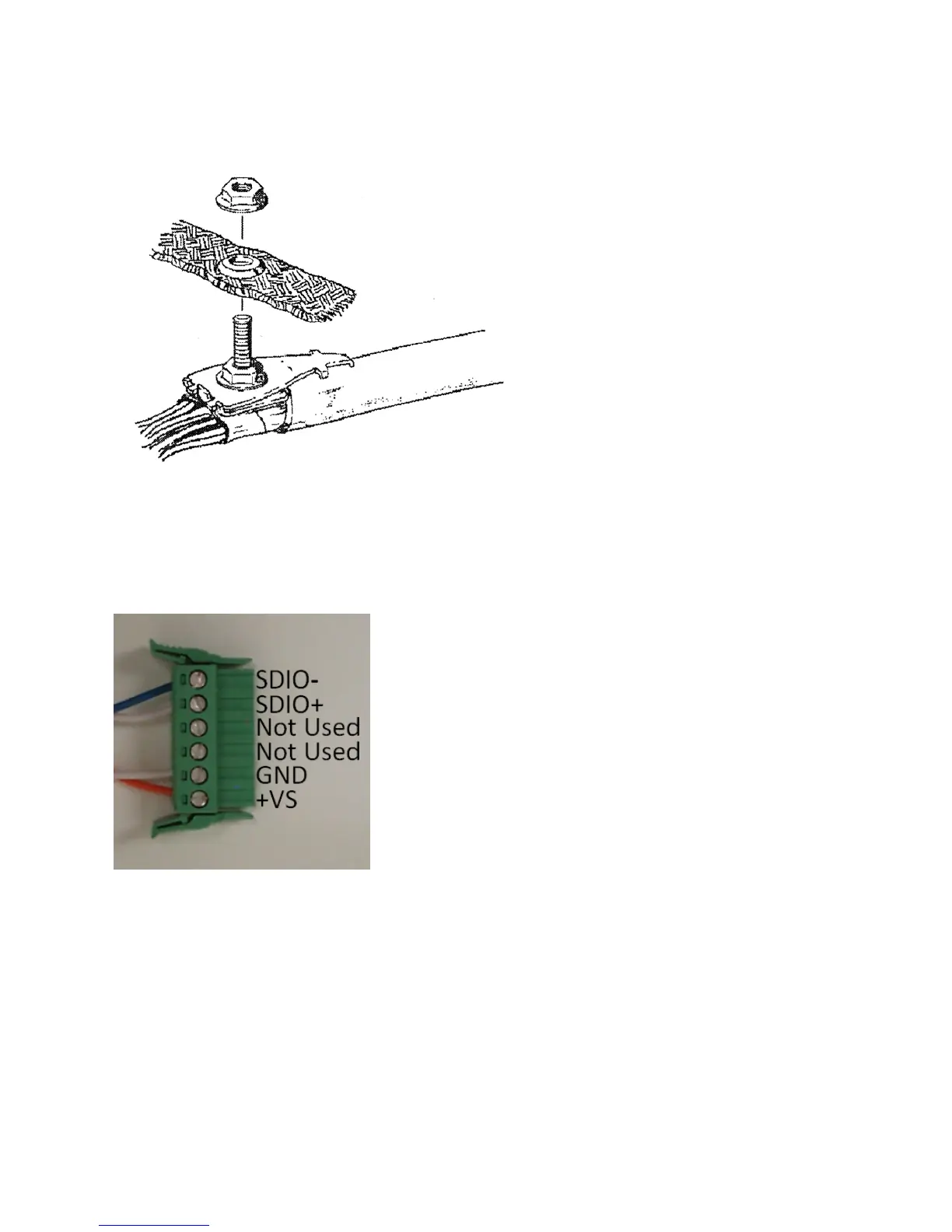

Figure3.3.2(f)AdditionalGrounding
After installing the grounding lug, separate the wire pairs and strip each of the wire’s insulation back
approximately
¼”(6mm).Ifyouareusingacablewithmorethantwopairscuttheunusedpairsshort
toavoidthepossibilityofshortingout.Installthewiresonthe6wayconnector,seeFigure3.3.2(g).
Figure3.3.2(g)
