3.2 The Base Station Unit

The Base Station is the wireless interface between the ICC ‐2W and the Camera Processor Unit. It is
mountedonthepoleormastarmnearesttheTrafficControlCa binet.Itshouldbesitedsuch thatthere
isclearlineofsightbetweentheBaseStationandeachofthe
Cameras.
3.2.1 Base Station Unit Mounting
The physical Base Station mounting is done using the mounting bracket provided. The Base Station
should be banded to the luminaire  arm or can be mounted on the mast arm using a suitable  bracket.
TheBaseStation shouldbemountedtothepoleclosesttotheTrafficControlCabinet.
Itshouldbesited
suchthatthereis aclearlineofsightbetweentheBaseStationandeachoftheCameras.
Note:Thereshould beaminimumdistanceof3’(1meter)betweentheBaseStationandeitherofthe
Cameras.This is necessary insituationswherethe BaseStation
 and Camera are bothmounted on the
poleclosesttotheTrafficControlCabinet

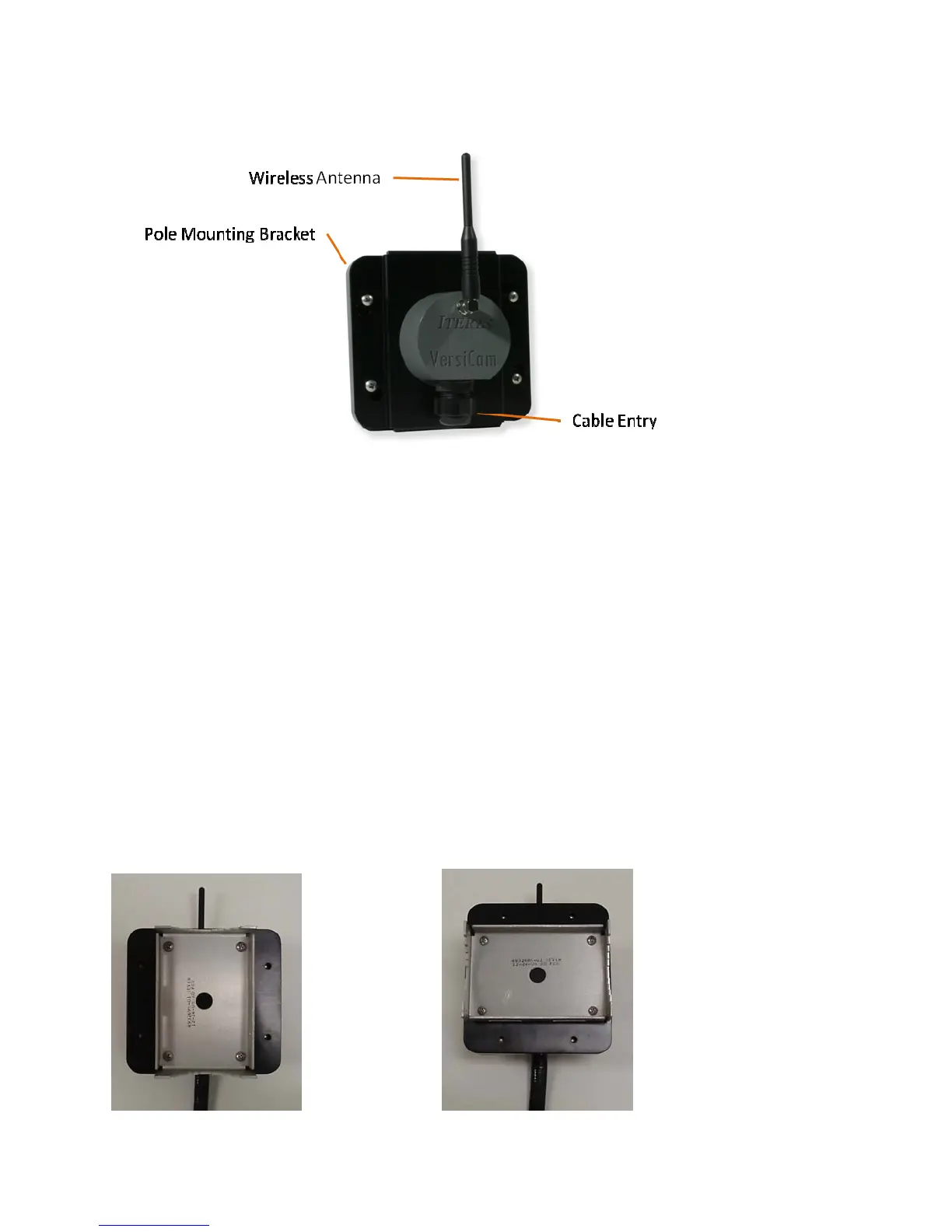

TheBaseStationcanbemountedeitherhorizontallyorvertically,seeFigures3.2.1(a)and(b).Oncethe
Base Station is mounted and wiring completed the cap assembly should be turned so the antenna is
pointingdirectly
up.
Figure3.2.1(a) Figure3.2.1(b)
