3.3 The ICC-2W Module



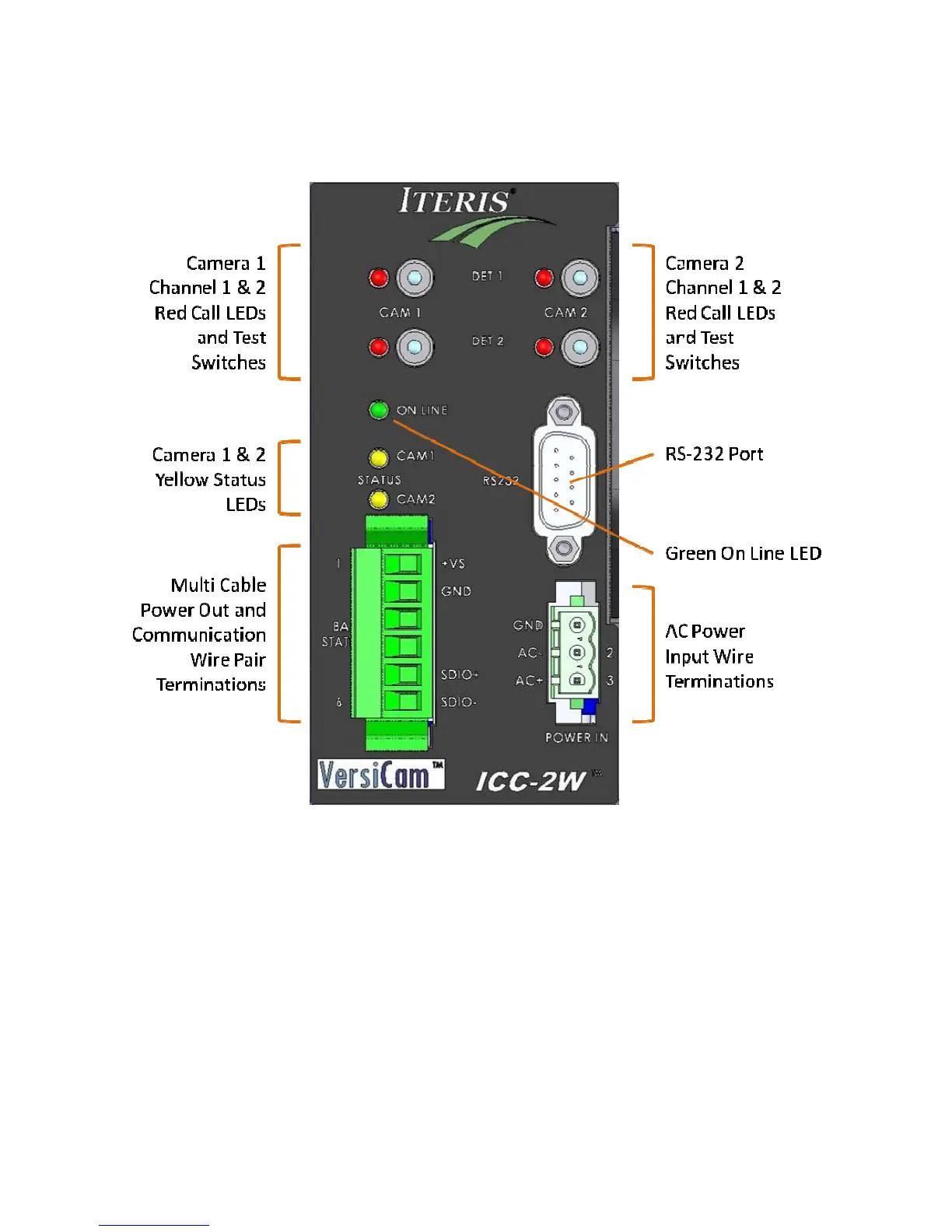

Figure3.3(a),TheICC‐2WModule
TheICC‐2WModuleisthecabinetinterfacetotheCameraProcessorUnit.ItprovidespowertotheBase
Station and receives data. It places the detection calls in the detector rack or input  file. The following
sectiondefinessomeofthefeaturesof
themodule.
GreenOnLineLED–thisindicationshouldalwaysbeilluminatedwhentheICC‐2Wmoduleisoperating.
FailureoftheOnLineLEDtoilluminatewhenappropriatepowerisappliedindicatesaproblemwiththe
ICC‐2Wmodule.


