23



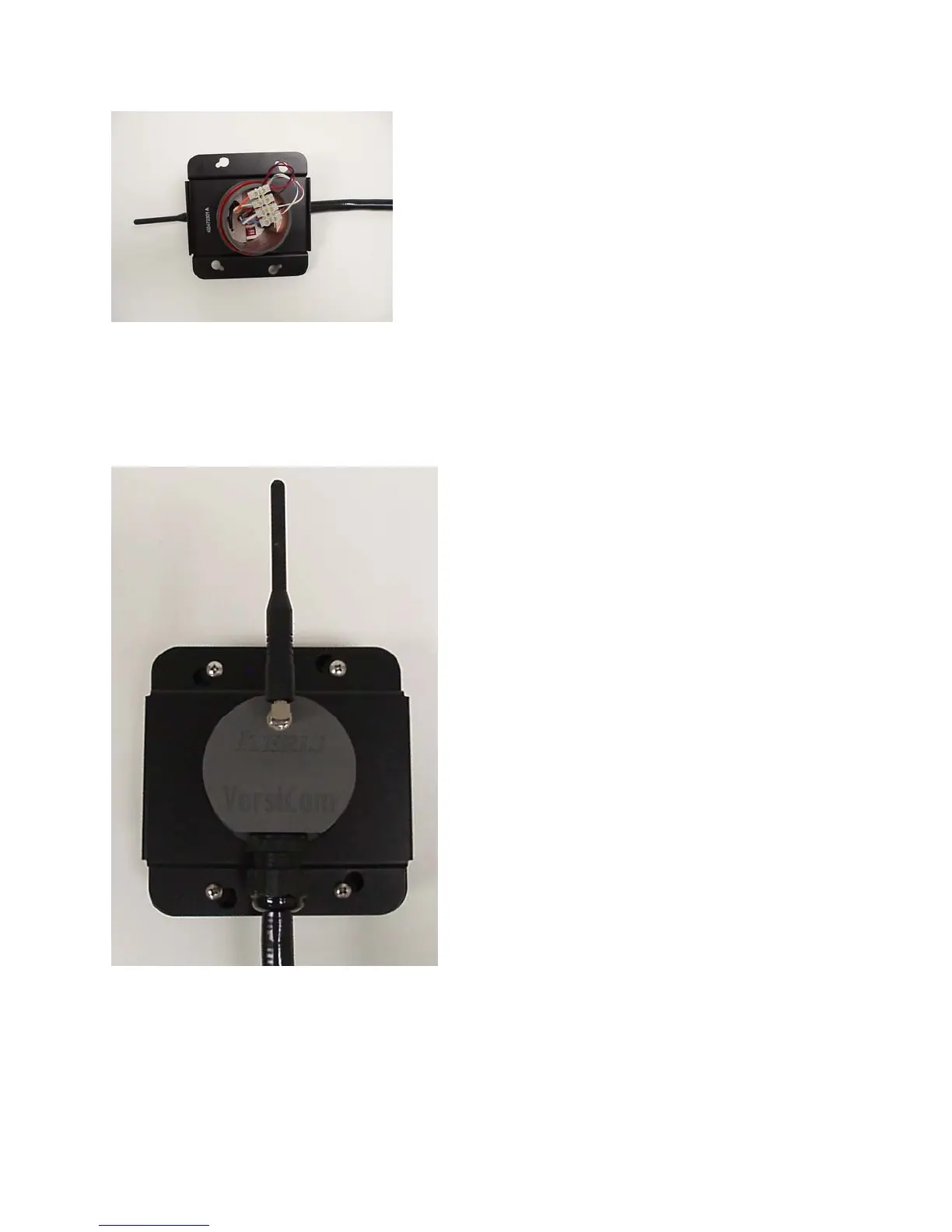

Figure3.2.2(e)
Re‐assemblethecapontothebasebutaligningthescrewheadswiththekey holesandturningthecap
assembly. Tighten the four screws to ensure the assembly is properly sealed from the elements. Turn
thecapassemblyuntiltheantennaispointedstraightup,seeFigure3.2 .2(f).
Figure3.2.2(f)
Theantenna issuppliedintheshipkit.Itis mountedby screwingtotherightanglebracketonthecap
assembly.


