22
Re‐assemblethecordgrip.Afterthecordgripissecurelyinstalledbackonthecapassemblythightenthe
nutdownuntiltheinnergrommetfirmlygripsthecablebody,seeFigure 3.2.2(c).Handtight isusually
sufficient.
Figure3.2.2(c)

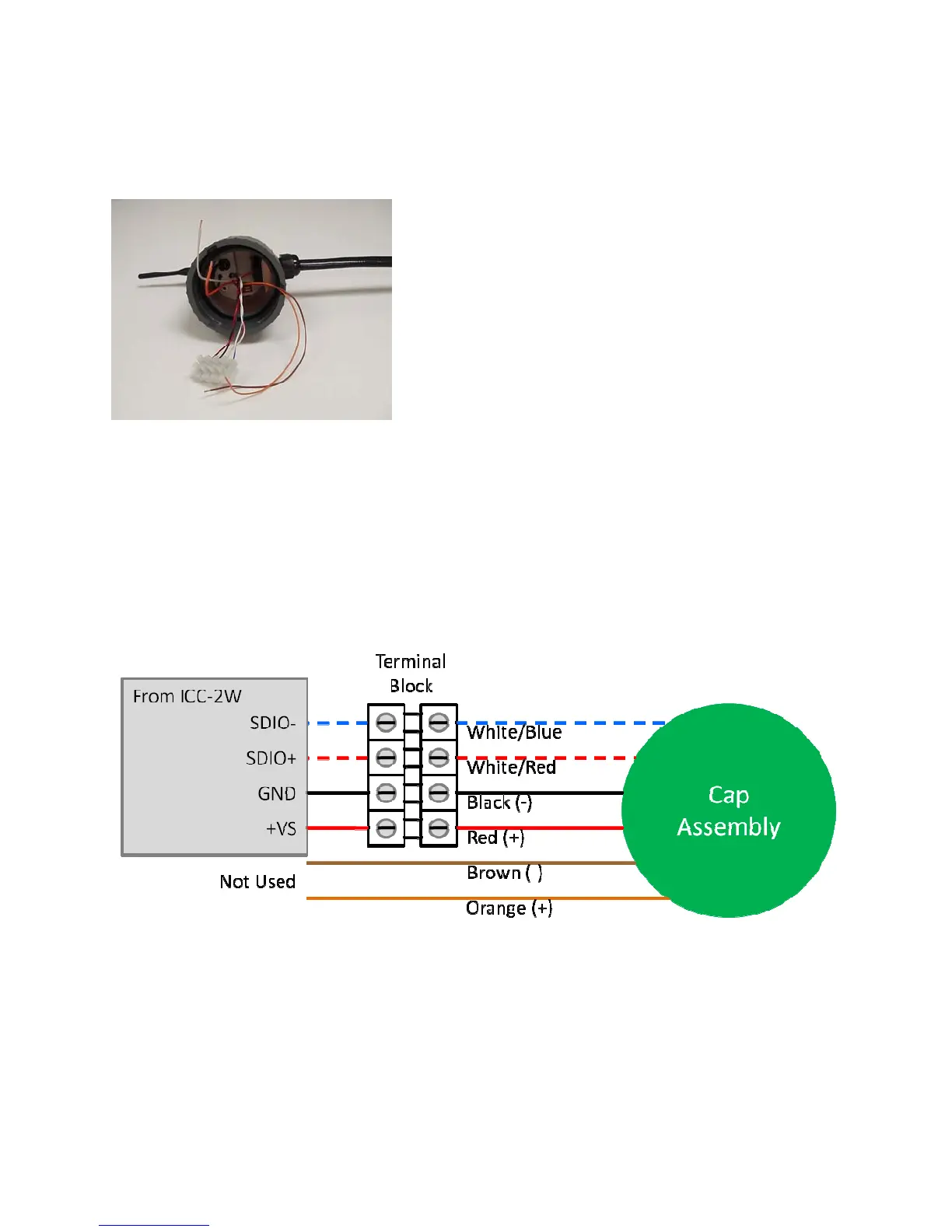

Nextconnecttheincomingwiretothefourwayterminalblockonthecapassembly.Connecttwowires
from the power source (24vdc) to the red and black connections on the terminal block. Ensure the
correct polarity, red is positive and black is negative. Connect two wires from
the communications
(SDIO‐and+). Ensure thecorrectpolarity,white/redisSDIO+ and white/blue isSDIO‐. Cut theunused
orangeandbrown wires to ensuretheydonot short outinsidethecapassembly.See Figures 3.2.2(d)
and(e).
Figure3.2.2(d)
