12


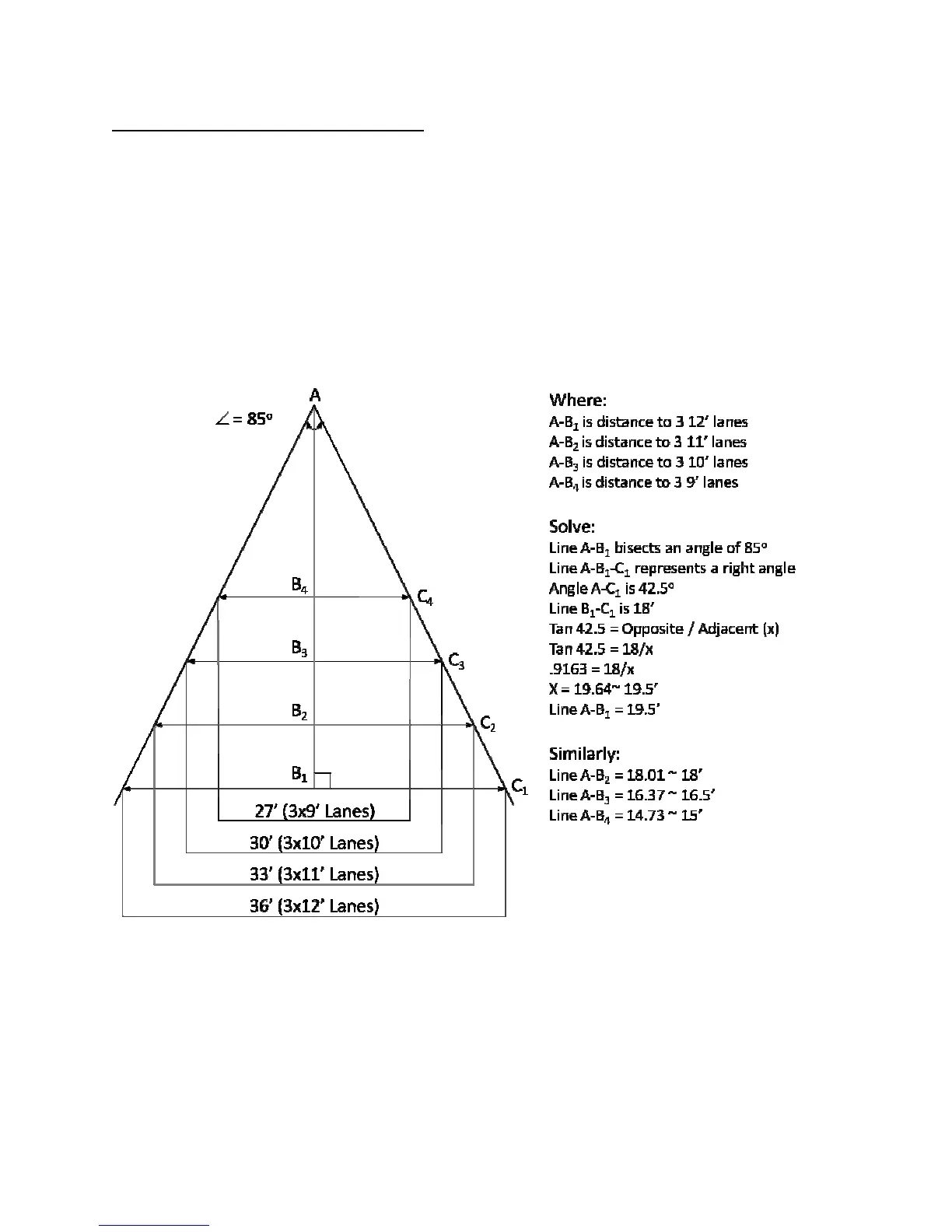

VersiCamCameraFieldofViewCalculations

Itispossibletocalculatethemountingheightnecessaryforanyinstallationusingthefollowingmath.

Assumptions:
1. CameraHFOVisatmaximumWAadjustmentof85
o
.
2. MinimumHFOVimageshouldincludeaminimumof2of3trafficlanes.
3. Typicaltrafficlanesare9’,10’,11’or12’wide.
4. Cameramountingheightrangeis10’to15’.
5. MountingheightfordeterminingtheminimumcameratoROIdistanceis0’(worsecase).

Thisexampleisforthreetrafficlanes.


ObtainingtheCameradistancetotheRegionOfInterest(ROI)forvariousmountingheightssimplyuses
theFOV (0’MH)distancecalculatedpreviouslyand usesit asthe hypotenuseofatriangleas described
below and then using Pythagorean theorem with the desired mounting
 height solves for the camera
setback.



