Installing a Local 4G WAN Antenna

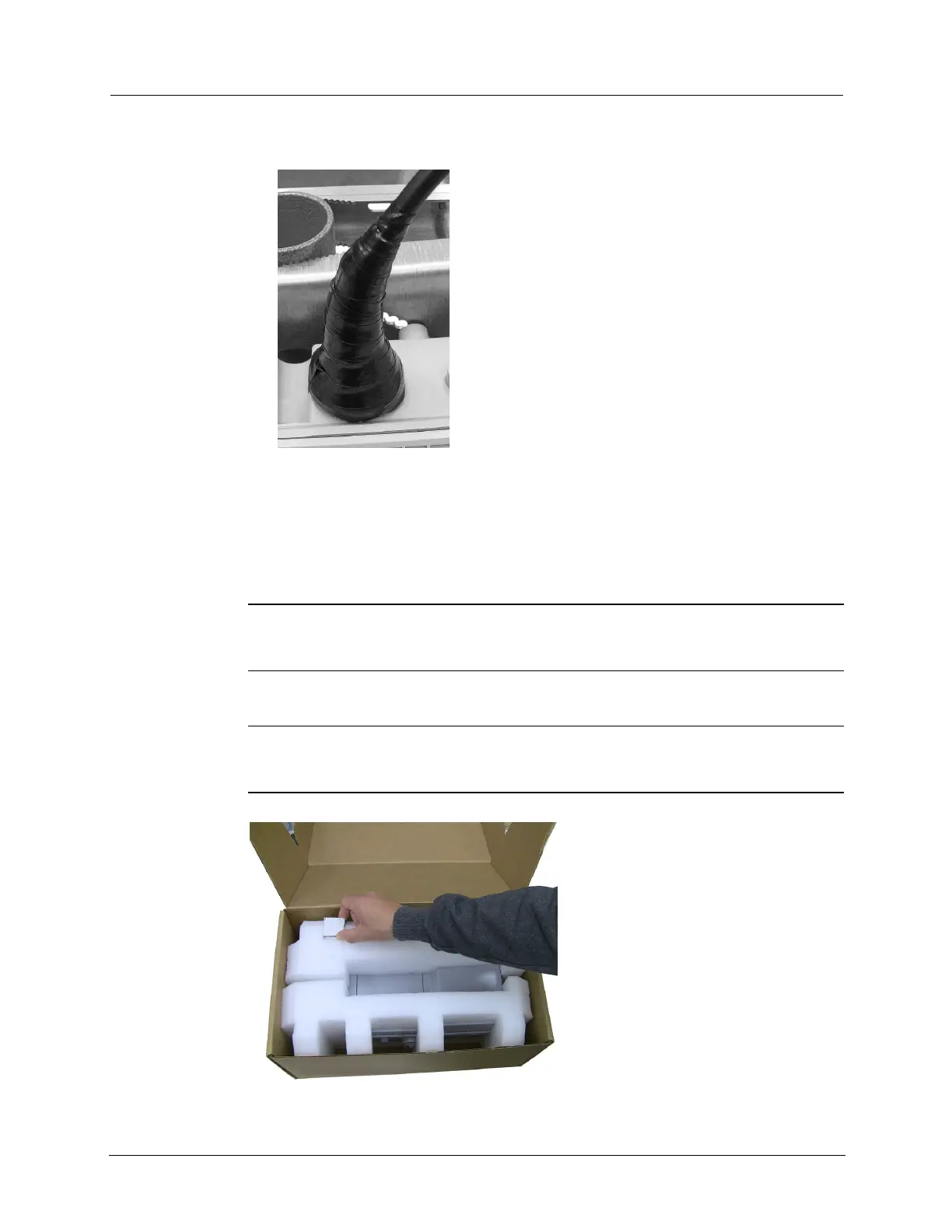

g. Continue wrapping the vinyl tape in a spiral back down to the collector. You now
have two layers of vinyl tape covering the butyl rubber.
4. If you are using an Ethernet backhaul, attach the Ethernet cable ensuring the weather-
tight connector is properly secured. If the Ethernet connection is not used, secure the
weatherproof cap.
5. Attach the grounding lug to earth ground according to local codes.
Installing a Local 4G WAN Antenna
Warning Do not install an 8.15 dBi antenna directly on the CCU. Antenna
installation directly on the CCU will compromise mechanical integrity and will not
meet the compliance requirement for a loss of 2.2 dB.
To attach the local 4G WAN antenna
Warning Do not install an 8.15 dBi antenna directly on the CCU. Antenna
installation directly on the CCU will compromise mechanical integrity and will not
meet the compliance requirement for a loss of 2.2 dB.
1. Remove the 4G WAN antenna from the main CCU shipping box.
TDC-0971-011 CCU 100 and Repeater 100 Installation Guide 33
Proprietary and Confidential
