Installing 40W and 50W ERT Modules
01079
01080
If you have not already done so, con-
nect the register to the water meter
and fully tighten the
mounting screw as directed by Bad-
ger Meter.
NOTE
The register can be installed on the meter in four
different positions with respect to the direction of
water flow (refer to the directions that come with the
meter or register).

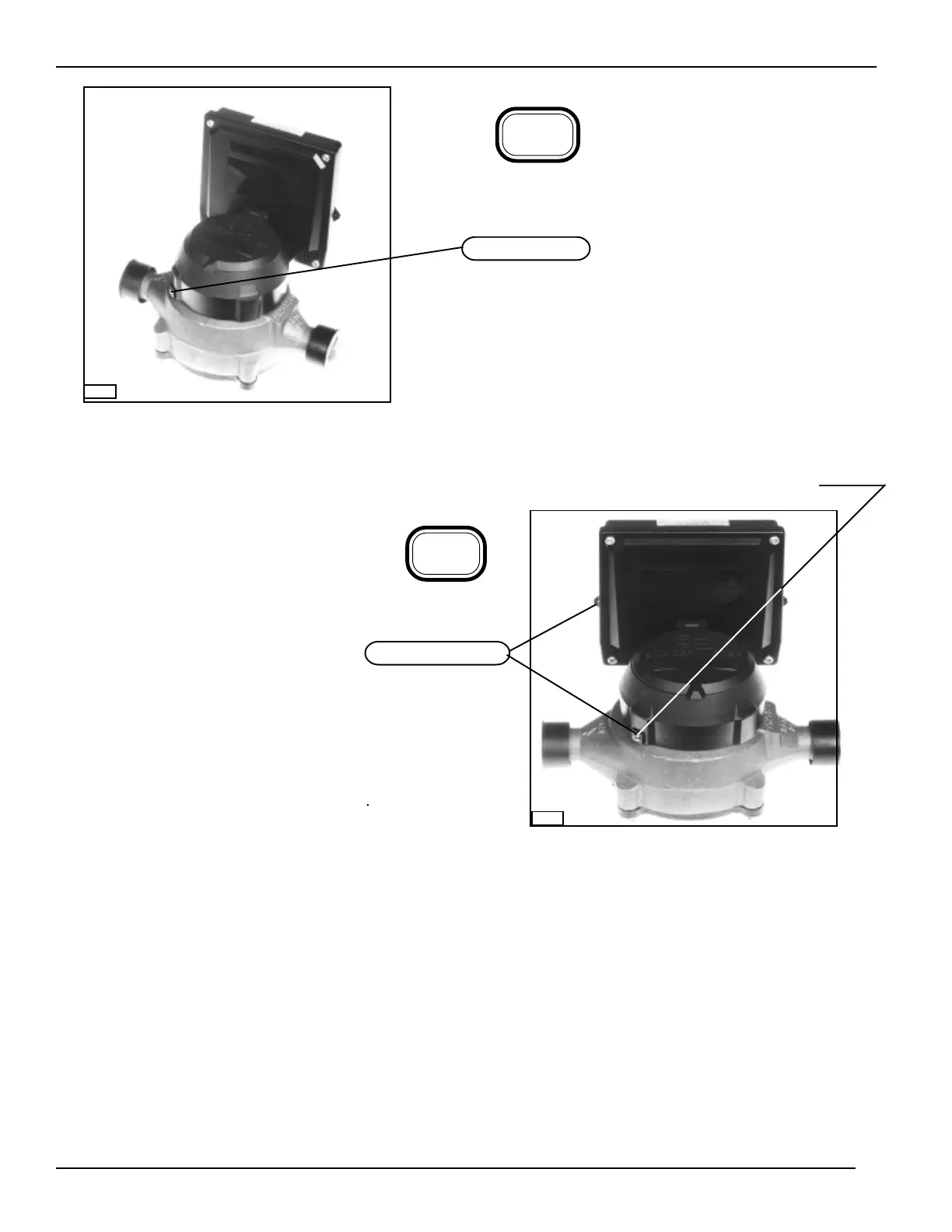

If the optional slotted and drilled RTR screw is used,
install a wire seal through the drilled screw from here to here,
or as specified by utility policy.
To complete the installation:
Program and check the ERT module as described in
ReadOne Pro® Programming Guide (TDC-0027-XXX).
2-6
2-7
If the standard Torx screw is used
(as shown), a wire seal is not necessary.
2-3
To Next Page
