Installing 40W and 50W ERT Modules PUB-0126-001 4/04
6-4

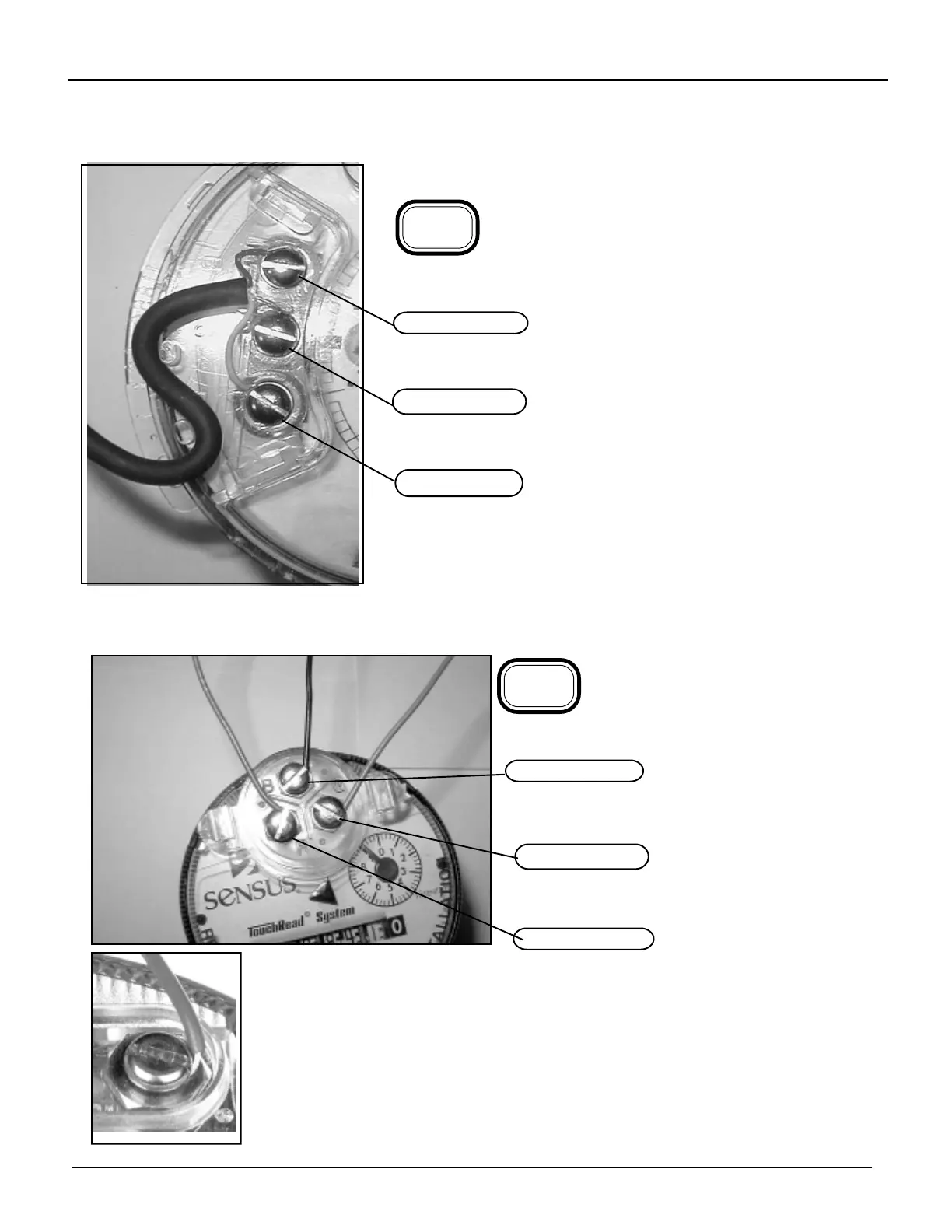

Remove the screw terminal cover.
Install the black wire under
this screw head.
Tighten the screw fully.
Install the green wire under
this screw head.
Tighten the screw fully.
Install the red wire under
this screw head.
Tighten the screw fully.
Install the screw terminal cover.
TO CONNECT TO SCHLUMBERGER ARB V OR PROREAD REGISTERS:
TO CONNECT TO SENSUS ECR OR ICE REGISTERS:
Remove the screw terminal cover.
Install the black wire under
this screw head.
Tighten the screw fully.
Install the green wire under
this screw head.
Tighten the screw fully.
Install the red wire under
this screw head.
Tighten the screw fully.
IMPORTANT
Be sure to install the wires around the screws in a clockwise
direction, as shown. If you don’t, the wires may partially or
completely come out from under the screw heads as you
tighten them. Also, make sure no insulation is compressed
under the screw head, or the wire might not make good
contact.
6-6
6-7
To Next Page
