Installing 40W and 50W ERT Modules
To connect a 40W or 50W ERT mod-
ule to a Badger register with a black-
insulated cable, connect as follows:
• Red to red
• Black to black
• Green to bare wire
6-8
6-9
Black
G
Bare
B
R
To connect A 40W or 50W ERT
module to the meter register (other
than Badger), connect the wires as
follows:
• Black to black
• Green to green
• Red to red
NOTE: For instructions on how to
connect gelcap connectors, see
Appendix A.
G
B
R
6-5

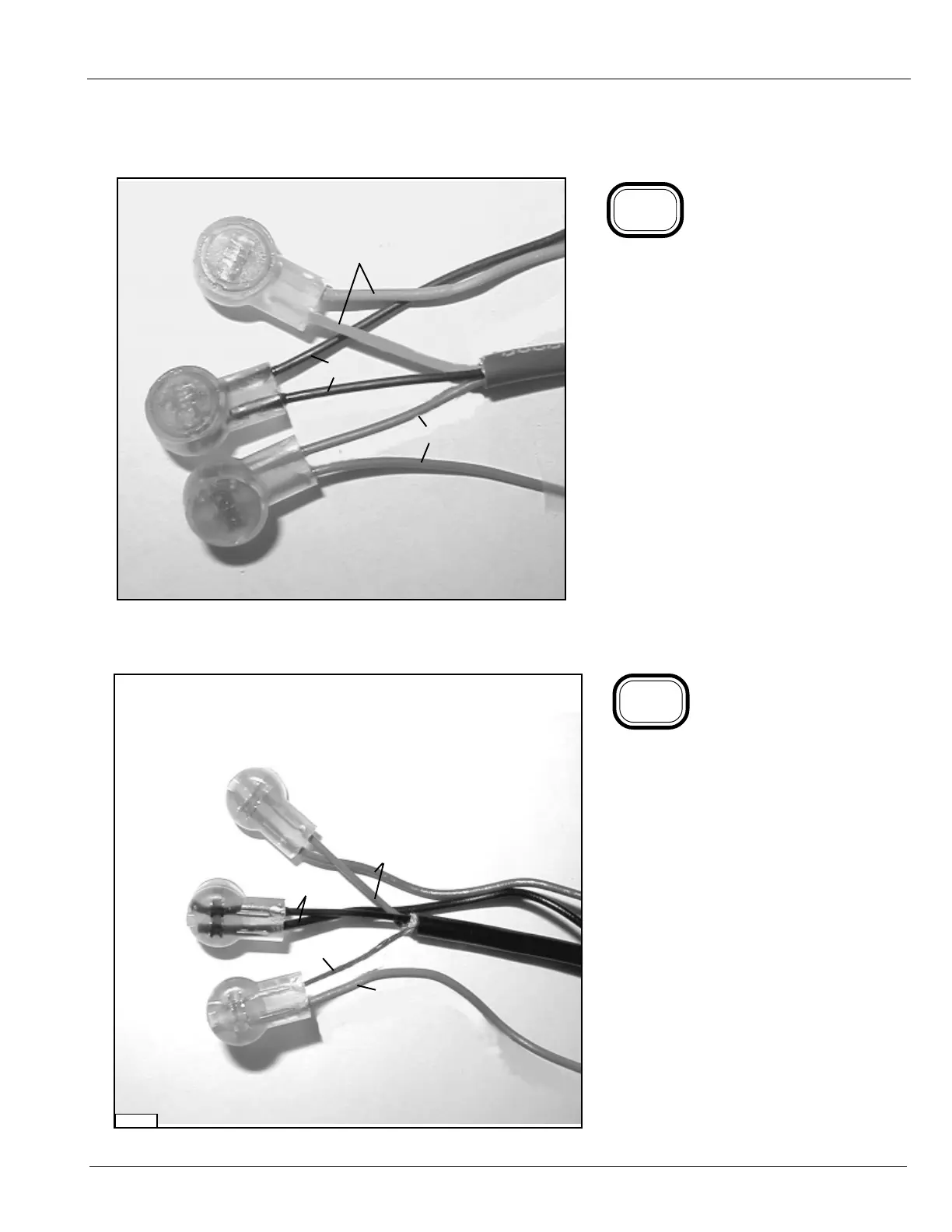

TO CONNECT THE ERT MODULE TO THE METER REGISTER USING
GELCAP CONNECTORS:
NOTE: For instructions on how to
connect gelcap connectors, see
Appendix A.
This configuration does
not support the
cut cable feature (Badger register
equipped with a brown-insulated cable
does support cut cable).
01549XY
