ITRON ERT 40W User Manual

Installing 40W and 50W ERT Modules
6-7

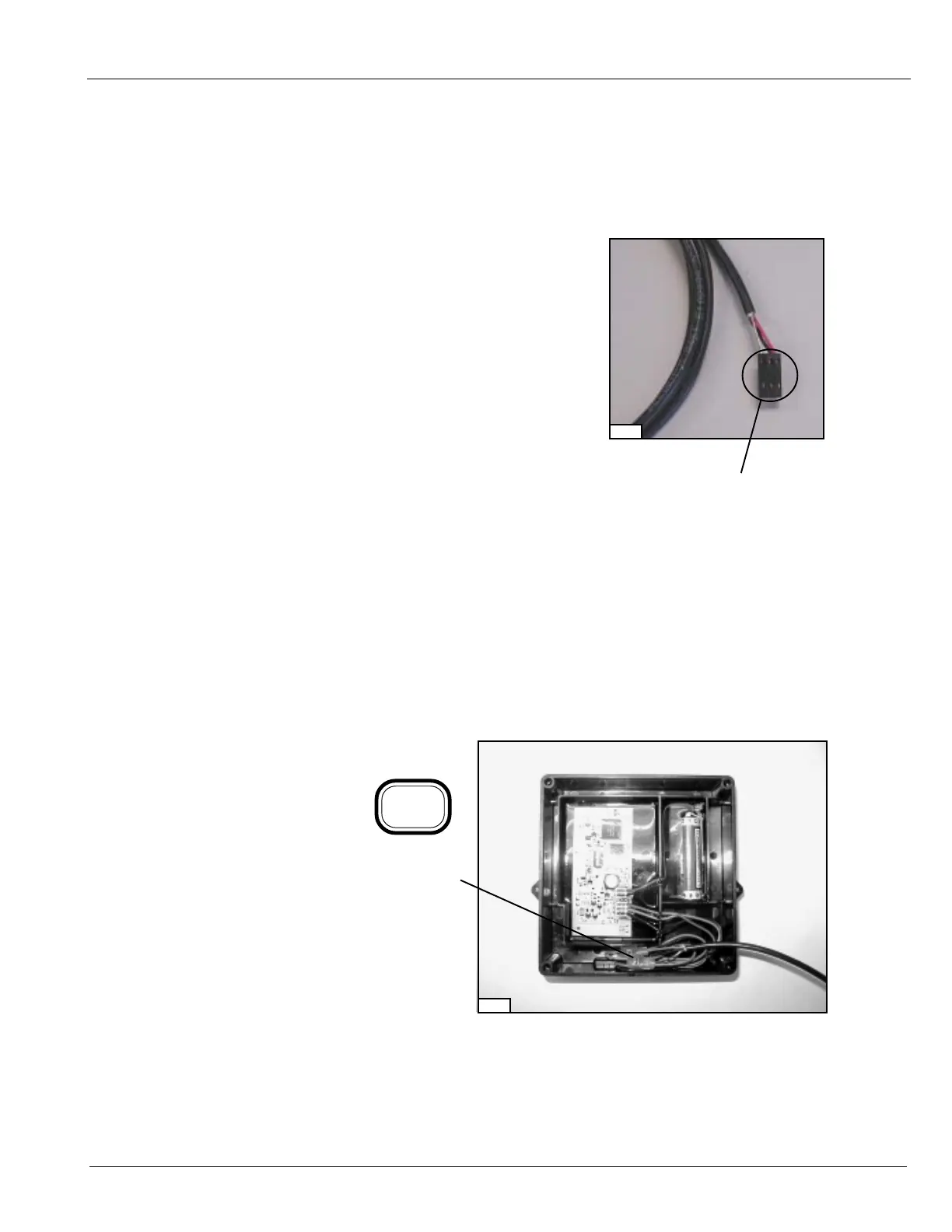

Push the connectors and ERT
module wires down into the ERT
module housing.
01549
6-12
Wiring Instructionsfor 6-11:
1. Cut black connector off the end of pulser assembly
about 1” from end. (See Picture)
2. Install the white cable tie about 2” from the end of the
pulser assembly that was just cut and properly tighten.
3. Remove about 1 1/2 inches of the cables outer jacket
and separate the 3 wires.
4. Place the Black wire from the ERT and the Red wire
from the pulser assembly into a gel connector and
properly crimp down on the connector. See Appendix A.
5. Place the Red wire from the ERT and the Black wire
from the pulser assembly into a second gel connector
and properly crimp down on the connector.
6. Place the Green wire from the ERT and the Bare wire
from the pulser assembly (remember to tightly twist bare
wire) into a third gel connector and properly crimp down
on the connector.
01874
Remove
