9.7.1.2. 3 wire asymmetrical (VDE) current transformer configuration
Terminal
Phase
Function
Terminal
Phase
Function
1
1
I1 - CT1 in
7
3
I3- CT2 in
2
1
U1 - Voltage
8
3
U3 - Voltage
3
1
I1 - CT1 out
9
3
I3 - CT2 out
4
No connection
11
No connection
5
2
U2 - Voltage
6
No connection

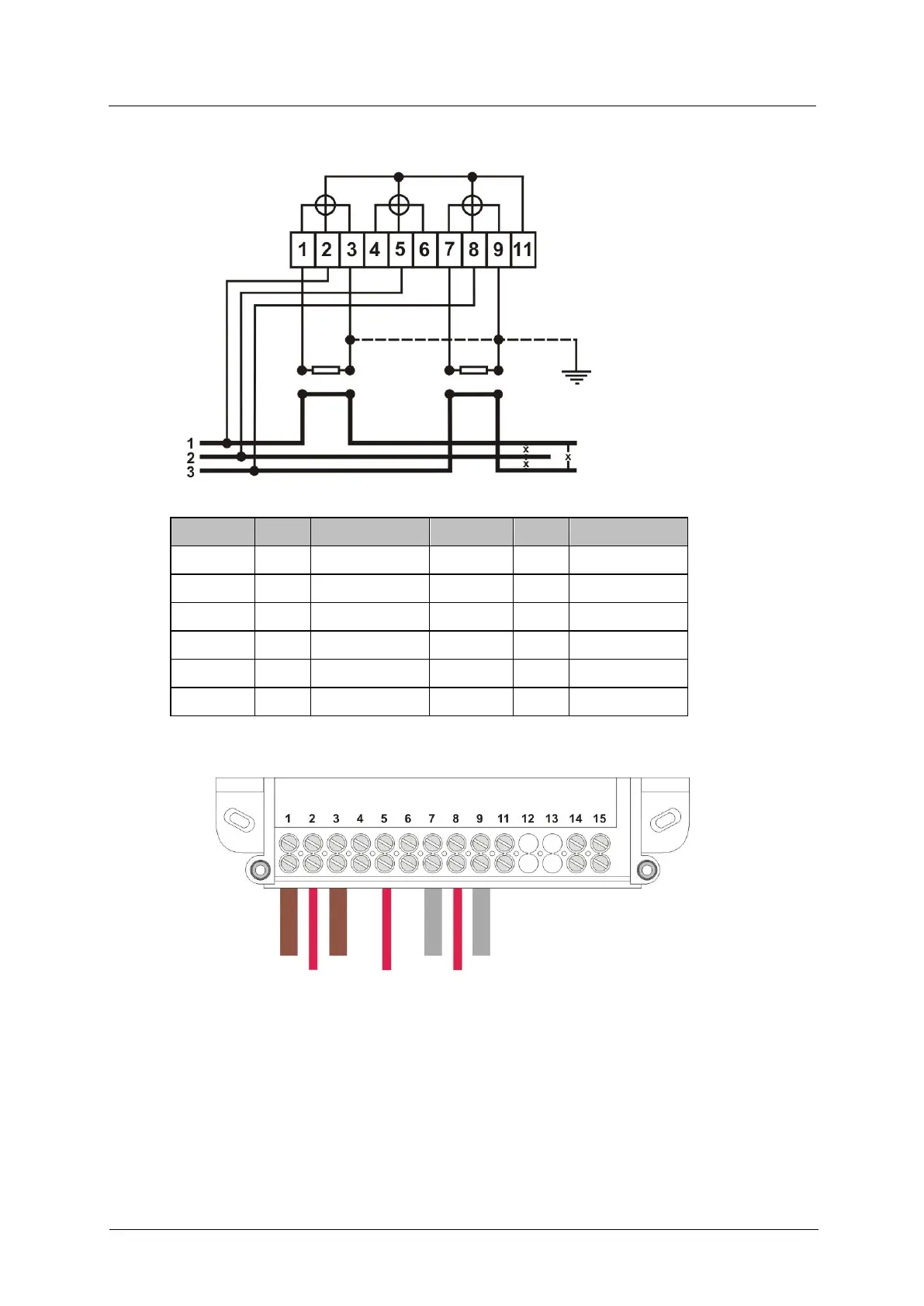

Typical wiring illustrated below:
