ITRON SL7000 - Three-Phase HV CT Connections; 4-Wire 3 X VT and 3 X CT

User Guide SL7000 IEC7
102
9.7.2. Three-Phase HV CT connections
9.7.2.1. 4-wire 3 x VT and 3 x CT
4 wire asymmetrical (VDE) 3 x VT and 3 x CT configuration
Meter configured for 4 wire, 3 element metrology
Terminal
Phase
Function
Terminal
Phase
Function
1
1
I1 - CT1 in
7
3
I3- CT3 in
2
1
U1 - VT1 in
8
3
U3 - VT3 in
3
1
I1 - CT1 out
9
3
I3 - CT3 out
4
2
I2 - CT2 in
11
Un
VT common + ground
5
2
U2 - VT2 in
6
2
I2 - CT2 out

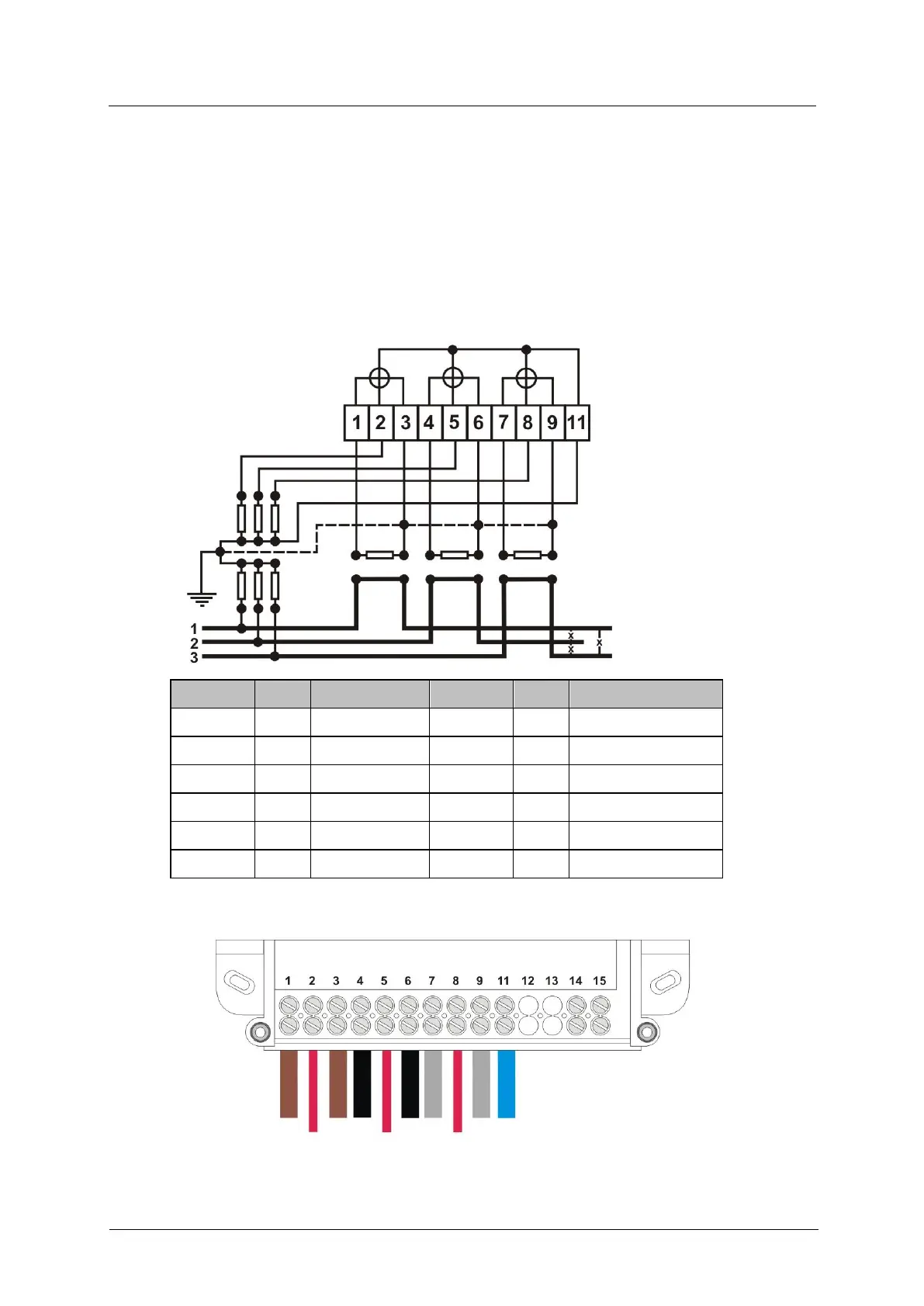

Typical wiring illustrated below:
