SL7000 User Guide

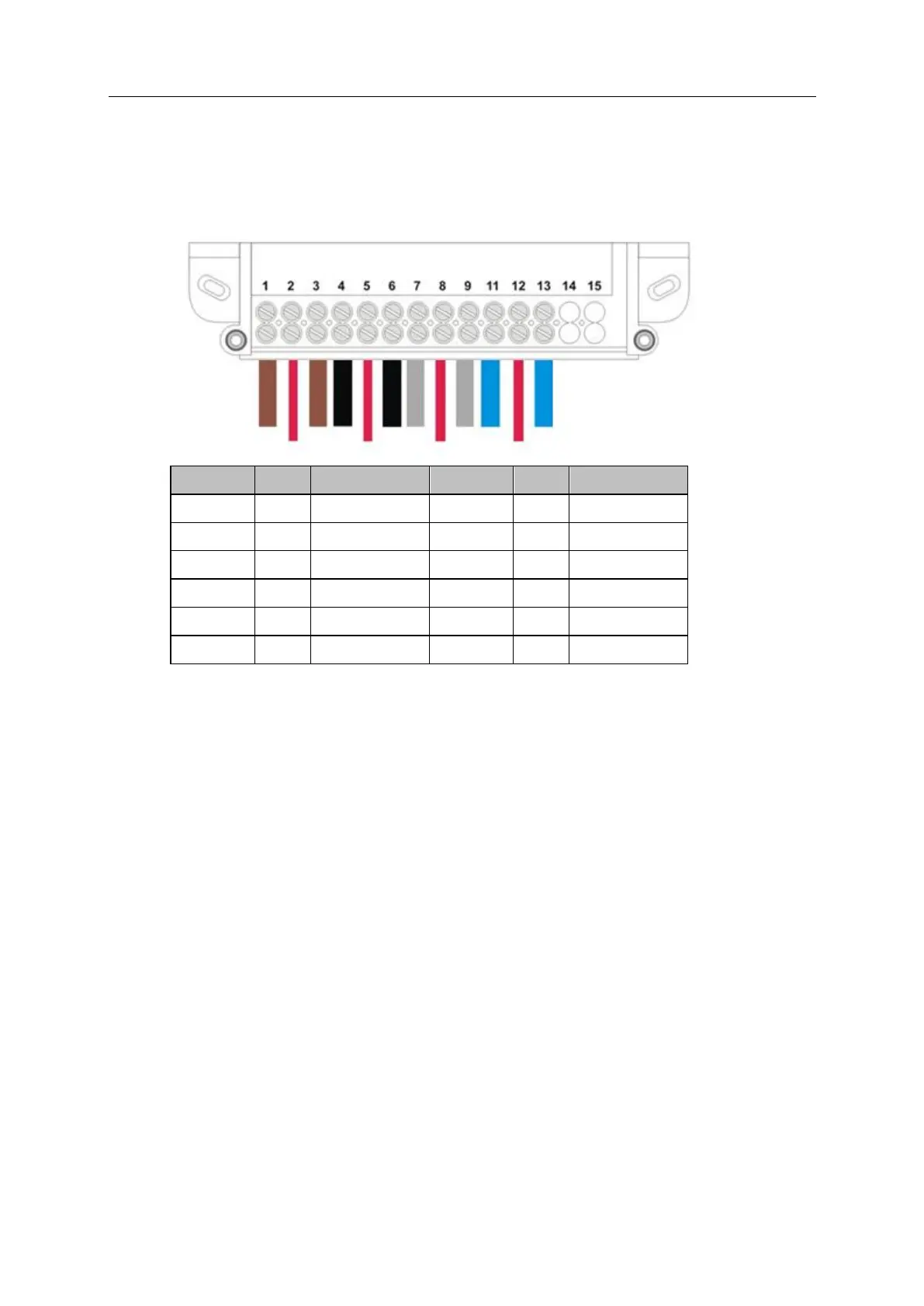

9.7.1.5. 4 wire asymmetrical (VDE) current transformer configuration with neutral sensor
Terminal
Phase
Function
Terminal
Phase
Function
1
1
I1 - CT1 in
7
3
I3- CT3 in
2
1
U1 - Voltage
8
3
U3 - Voltage
3
1
I1 - CT1 out
9
3
I3 - CT3 out
4
2
I2 - CT2 in
11
N
In – Neutral in
5
2
U2 - Voltage
12
N
Un – Neutral
6
2
I2 - CT2 out
13
N
In – Neutral out
