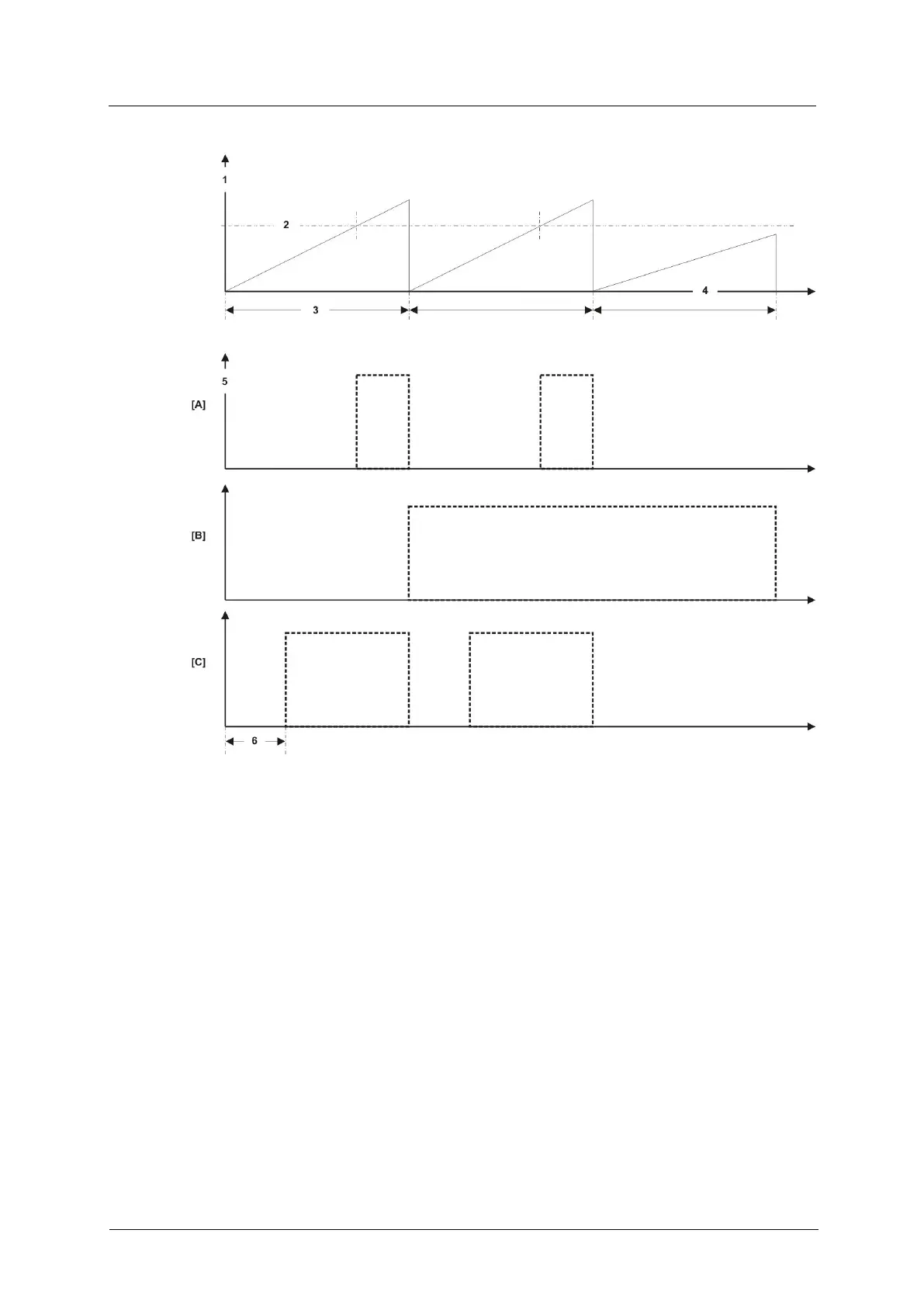

The illustration below shows the different excess demand indication characteristics for each of the modes:
[A]
Rising demand mode
1
Rising value
[B]
End of integration mode
2
Excess demand threshold
[C]
Projection mode
3
Integration periods
4
Elapsed time
5
Excess demand indication
6
30% of integration period
