ITT 3196 i-FRAME - Page 50

1
2
3
4

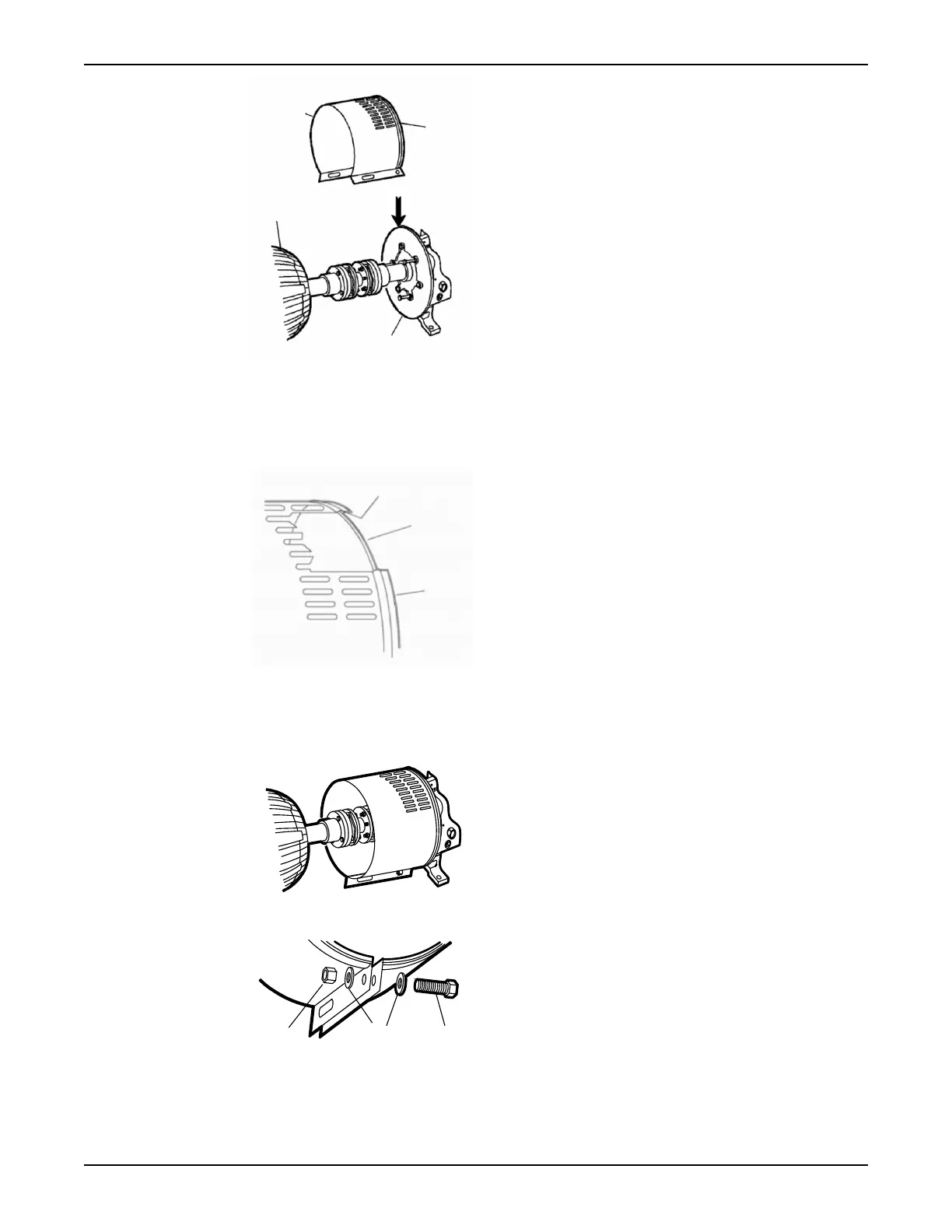

1. Annular groove
2. Pump-side end plate
3. Driver
4. Pump half of the coupling guard
The annular groove in the coupling guard half must fit around the end plate.
1
2
3
1. Annular groove
2. End plate (pump end)
3. Guard half
4. Use a bolt, a nut, and two washers to secure the coupling guard half to the end plate. Tighten securely.
1
2
3
1. Nut
2. Washer
3. Bolt
5. Put the driver half of the coupling guard in place:
a) Slightly spread the bottom apart.
Commissioning, Startup, Operation, and Shutdown
48 Model 3196 i-FRAME Installation, Operation, and Maintenance Manual
