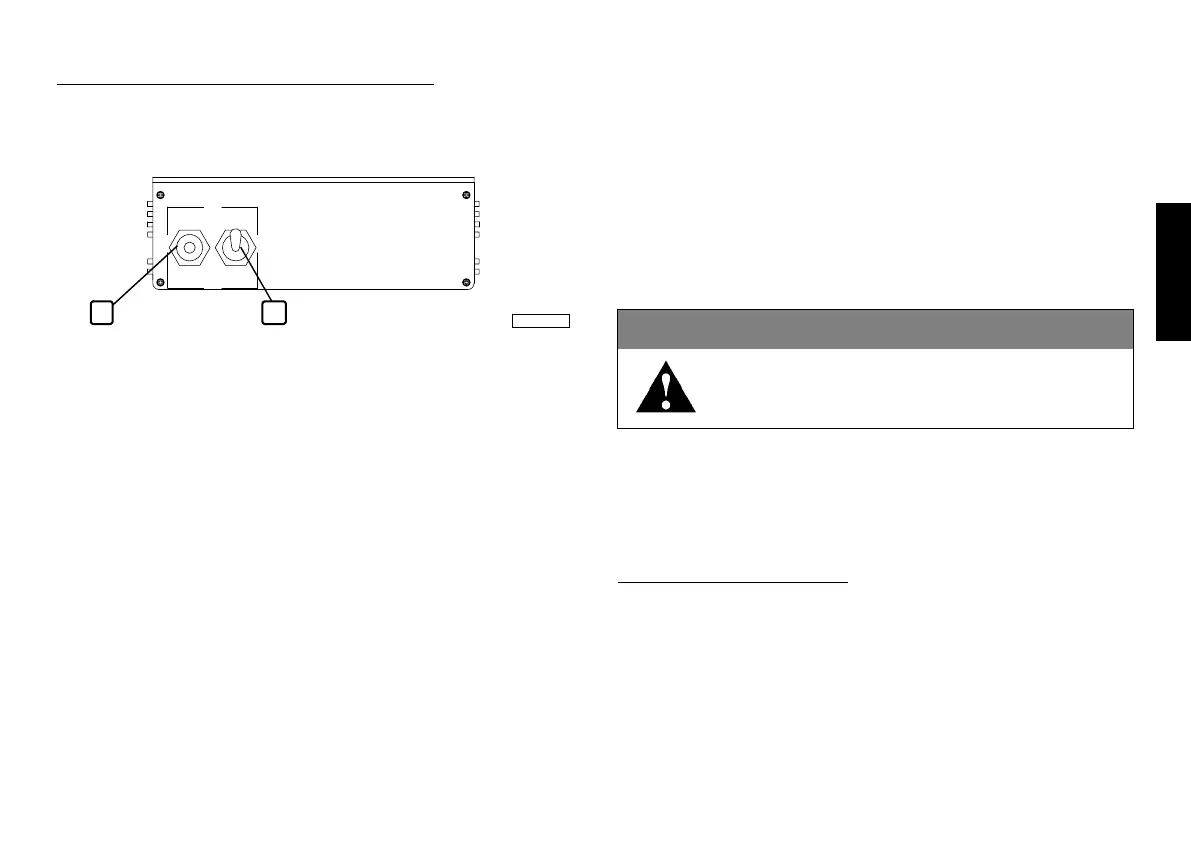

With transfer and pre-lubrication electric system (optional)
The above operations can be performed by acting on the push button
located on the electronic module. Fore safety reasons controls are
enabled on only when the key switch is turner to 8A (stop).
Place under the cock (5 on next page) a container to collect the
exhaust oil.
Turn the EV OFF/EV ON (B) switch to EV/ON, to the electric
pump will be connected to the cock.
Open the cock (1) and press (A) to DISCHARGE, until it is fully
empty.
Connect the cock to the new oil container and press the button
towards CHARGE until filling is completed.
Turn the EV OFF/EV ON (B) to EV/OFF, to allow operation of the
pre-lubrication system.
Dispose oil observing current regulations in force.
Efficiency testing of one-way valve in the pre-
lubrication system (image page 32)
Proceed with engine not running.
Loosen the connection (7) and wait for the complete oil drain from
the pre-lubrication piping.
Start the engine and check that no oil flows out of the valve (6).
Stop the engine and tighten.
Replace the valve in case of oil leaks.
Oil filter replacement
Use only filters with filtering degree equal to the above ones (see
FREQUENCY).
With traditional filter support
Proceed only with engine not running and at low temperature to avoid
any risk of burns, after emptying exhaust oil.
/&&#(!2'%
%6$)3#(!2'%
/.
%6
A
B
04_037_C
WARNING!
Proceed with utmost care, considering the fluid high
temperature and the presence of moving parts. Always wear
suitable personal protection equipped.
