35
IVT 495 TWIN 9518799

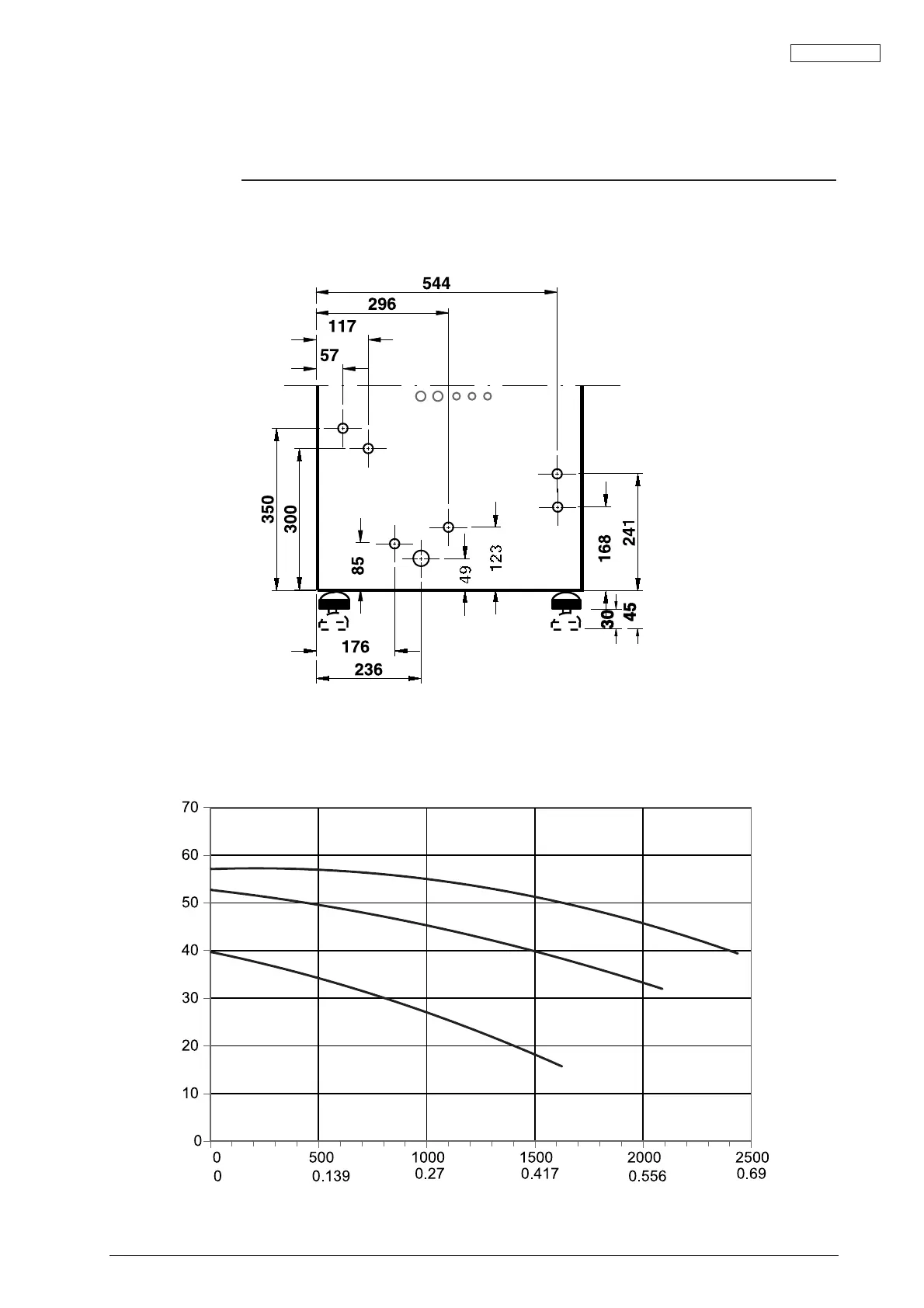

Pipe installation
Standard pipe connections
Waste
water
Return
Riser
HW
CW
HTF (coll) in
HTF (coll) out
View from the back
Heat medium diagram
Water flow [l/h and l/s]
Wilo 25-6 L1
Wilo 25-6 L2
Wilo 25-6 L3
kPa
Electrical lead-throughs
Available pressure
INSTALLER
