IVT 495 TWIN - Installer Technical Diagrams; Circuit Diagram

32
IVT 495 TWIN 9518799

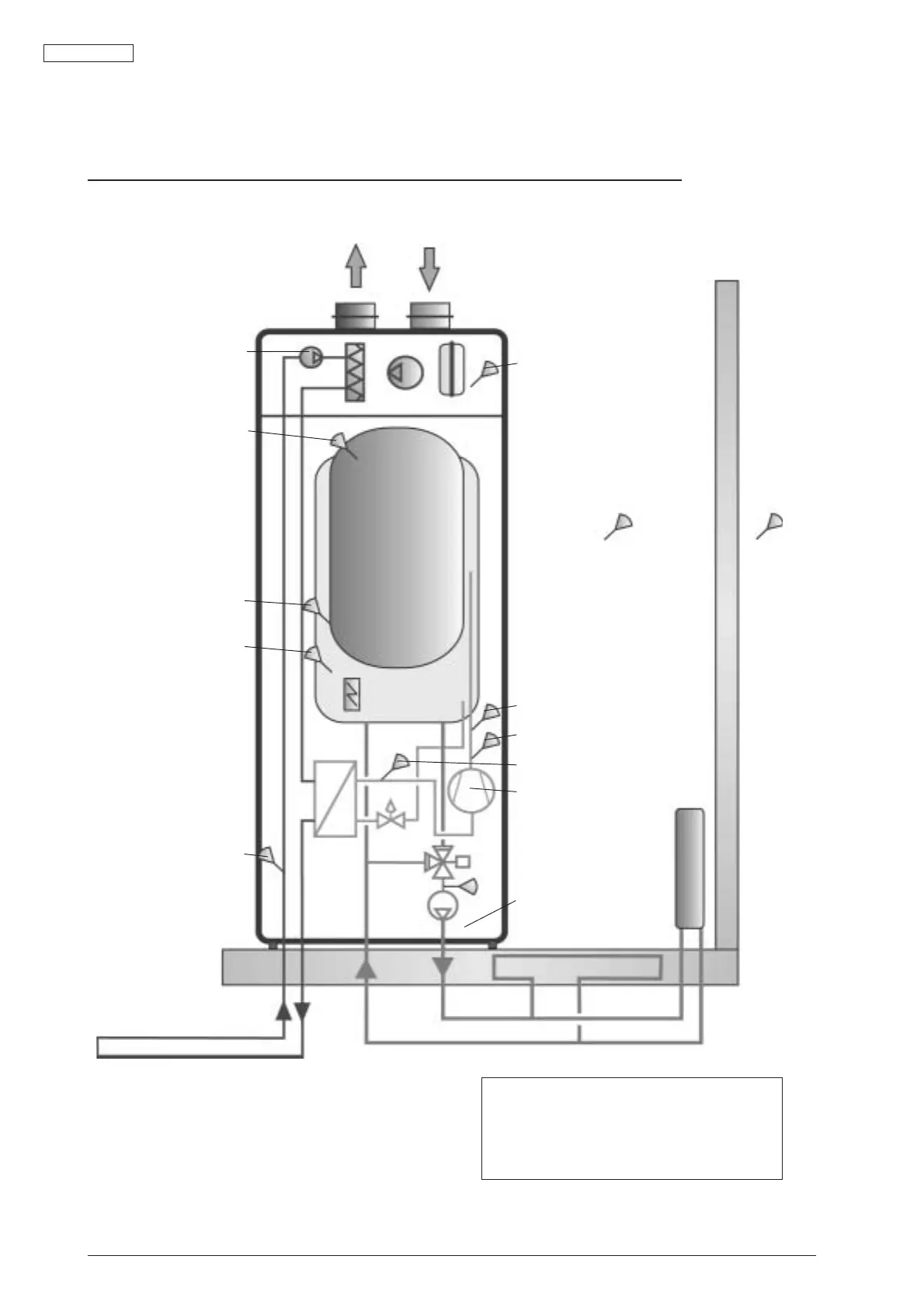

Circuit diagram
Expansion
valve
GP3 Defrost monitor
GP1 Low pressure
switch
GT6 Hot gas temp
GP3 High pressure switch
GT5
Room temperature
(accessory)
GT3:2
Tank temp
GT3:3 Tank
temp
Electric
element
Evaporator
GT1
Flow temperature
Floor heating or radiators
GT3:1
Tank temp
Expansion vessel
GT2
Outdoor
temperature
Compressor
Fan
Heat transfer fluid
pump
Ground coil
For a combination of floor heating and
radiators, where two different flow
temperatures are required, install an
intermediate shunt group.
GT3:10
Incoming heat
transfer fluid temp
