IVT 495 TWIN - Ground Coil Placement Example

41
IVT 495 TWIN 9518799
Min 1.0 m
Min 1.5m
495 TWIN
Min 1.5m
Min 0.5m from boundary to neighbours.
Placement of ground coil

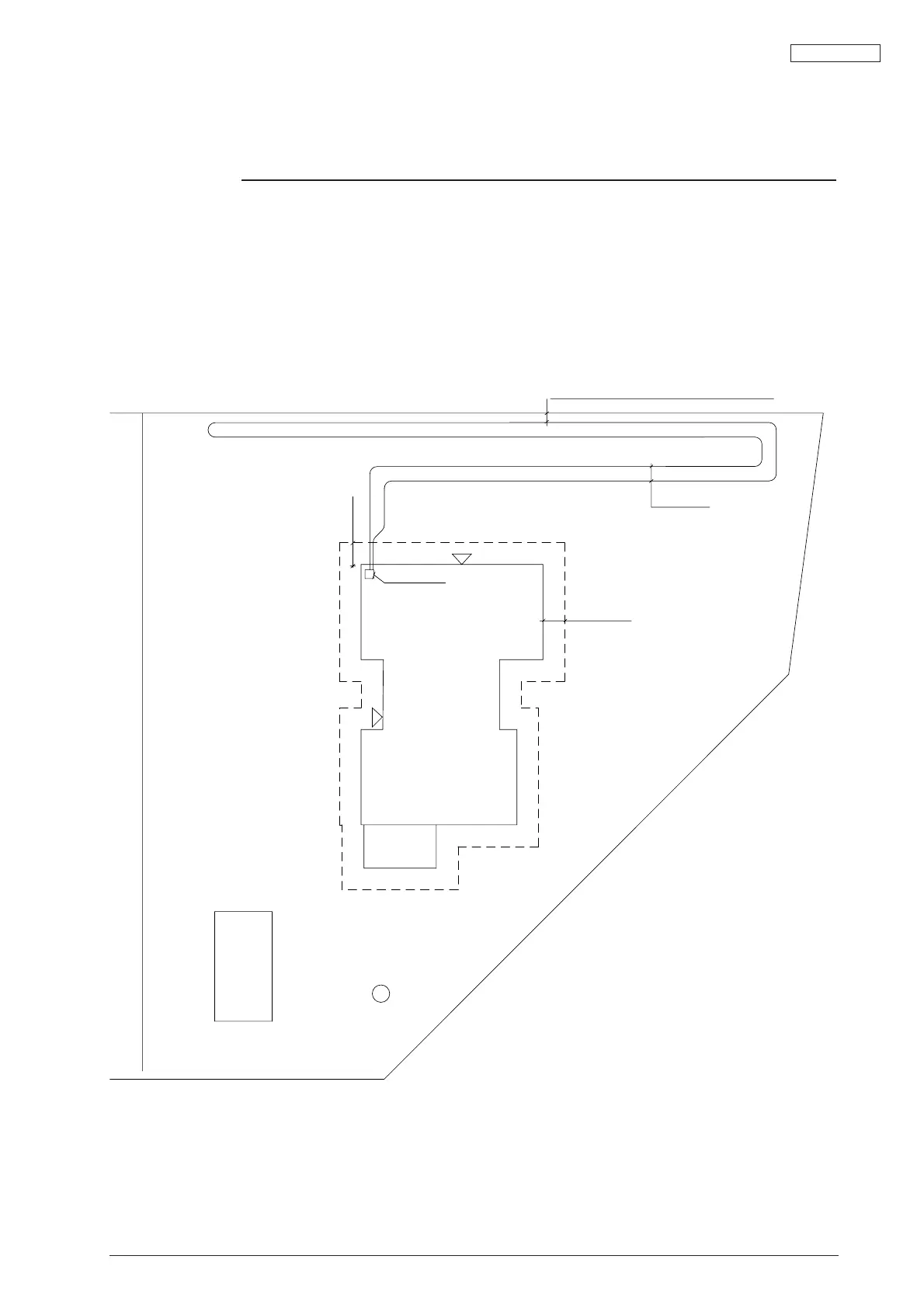

Outline drawing
The ground coil should be placed in relation to the shape of the site. An example is provided below.
Do not remove snow from above the coil since it insulates the ground heat.
