B When the fluid level has fallen to 25% in the filling
station, the pump should be stopped and more
collector circuit fluid should be filled and mixed.
B When the circuit is full and air no longer comes from
the return pipe, the pump should be run again for at
least 60 minutes (the fluid should be clear and should
not contain any bubbles).
B The circuit must be pressurized when venting is
complete. Turn the valves on the filling unit to
pressure increase position and pressurize the circuit
to 2.5 to 3 bar ( Figure 20).

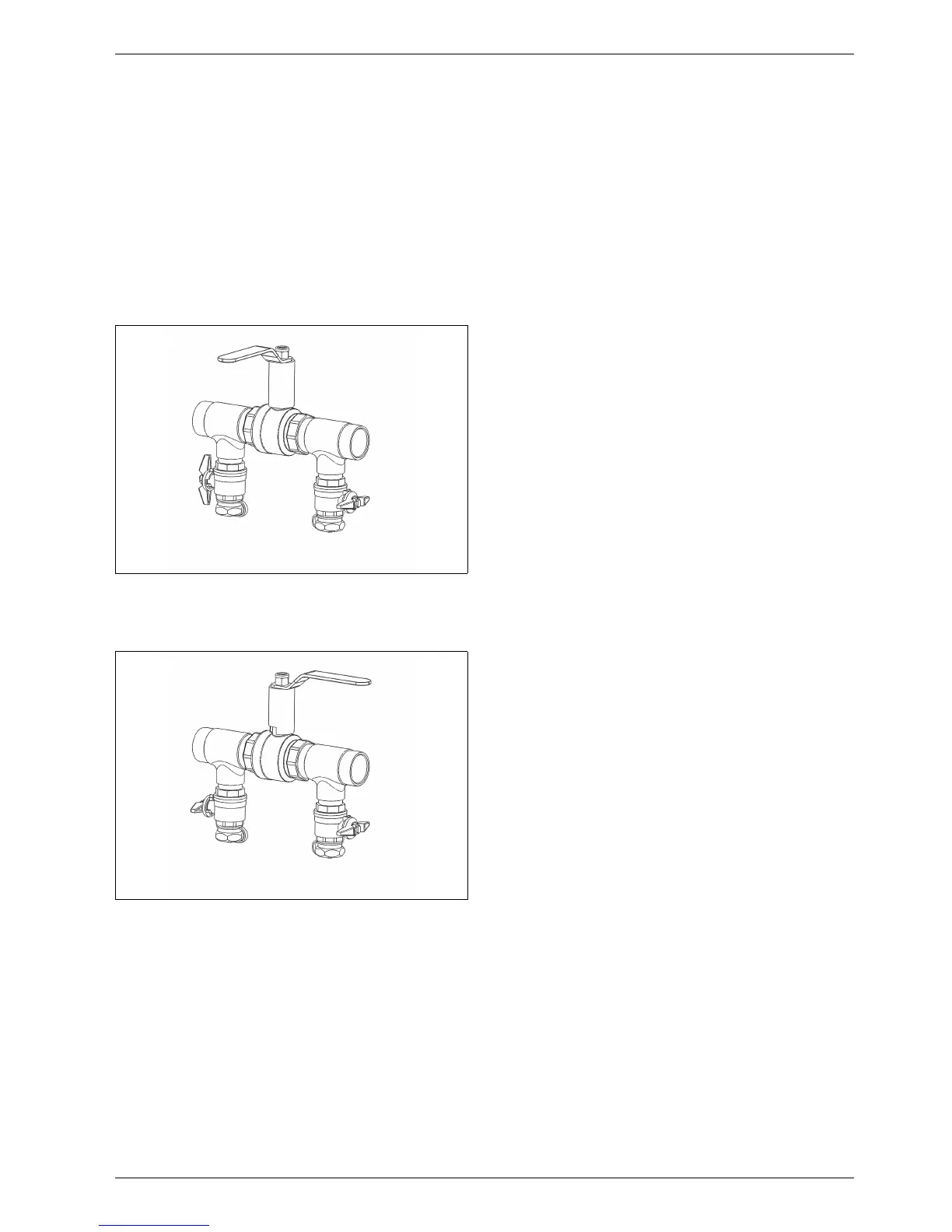

Fig. 20 Filling unit in pressure increase position
B Turn the valves of the filling unit to normal position (
Figure 21) and turn off the pump on the filling station.
Fig. 21 Filling unit in normal position
B Disconnect the hoses and insulate the filling unit.
If other equipment is used, the following is required,
among other things:
• A clean container with capacity for the amount of
collector circuit fluid that is required
• An additional container for collection of contaminated
collector circuit fluid
• Submerged pump with filter, flow capacity of min.
6m
3
/h, pressure height of 60 to 80 m
• Two hoses, Ø 25 mm
6720614967-34.1I
6720614967-32.1I
