Jackson Avenger LT - Control Panel Assembly;Kick Panel Weldment, AvengerHt

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
22

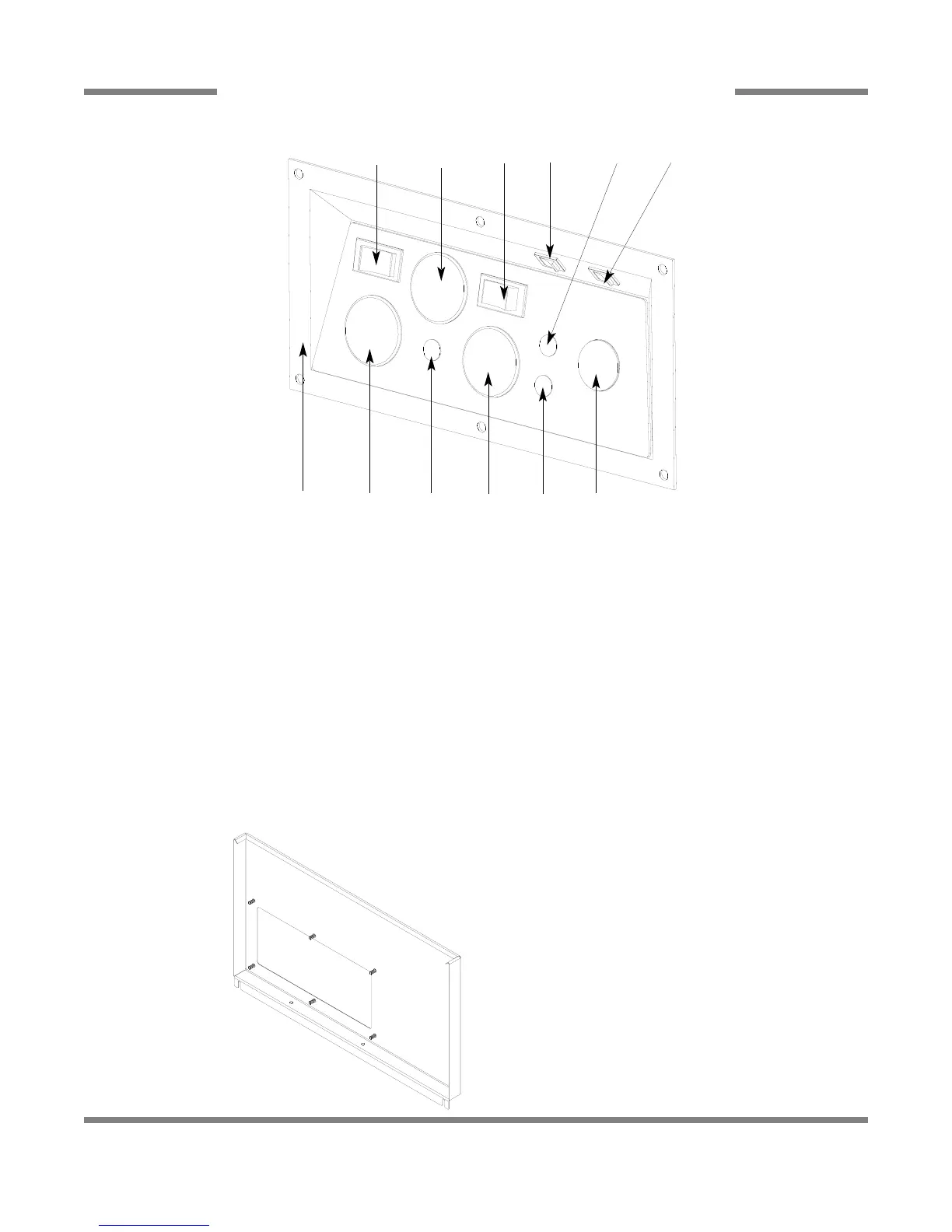

CONTROL PANEL ASSEMBLY/KICK PANEL WELDMENT - AVENGER™HT
11
4 5
2
1
3
6
12
10
8 9
7
ITEM QTY DESCRIPTION Mfg. No.
1 1 Control Panel 09330-003-31-66
1 Decal, Control Panel 09905-003-31-65
6 Locknut, 1/4”-20 S/S Hex w/Nylon Insert 05310-374-01-00
2 1 Thermometer, 48” Rinse 06685-111-68-48
3 1 Light, Amber 05945-111-44-44
4 1 Thermometer, 96” Wash 06685-111-68-49
5 1 Light, Red 05945-111-44-45
6 1 Window Plug 05975-003-31-72
7 1 Switch, Rinse Aid 05930-011-49-54
8 1 Switch, Detergent 05930-011-49-54
9 1 Light, Green 05945-111-44-43
10 1 Switch, On-Off 05930-301-49-00
11 1 Gauge, 0-100 PSI with Green Zone 06680-011-86-42
1 Bell Adapter, 1/4FNPT x 1/8 FNPT 04730-003-33-02
1 Hose, Pressure Gauge 04730-003-33-39
12 1 Switch, Auto-Manual 05930-011-49-55
Complete Control Panel
Assembly
05700-003-31-64
Kick Plate Weldment
05700-003-32-91
To order the wire harness use
number: 05999-003-34-61.
