Jackson Avenger LT - Motor & Pump Assembly

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
35

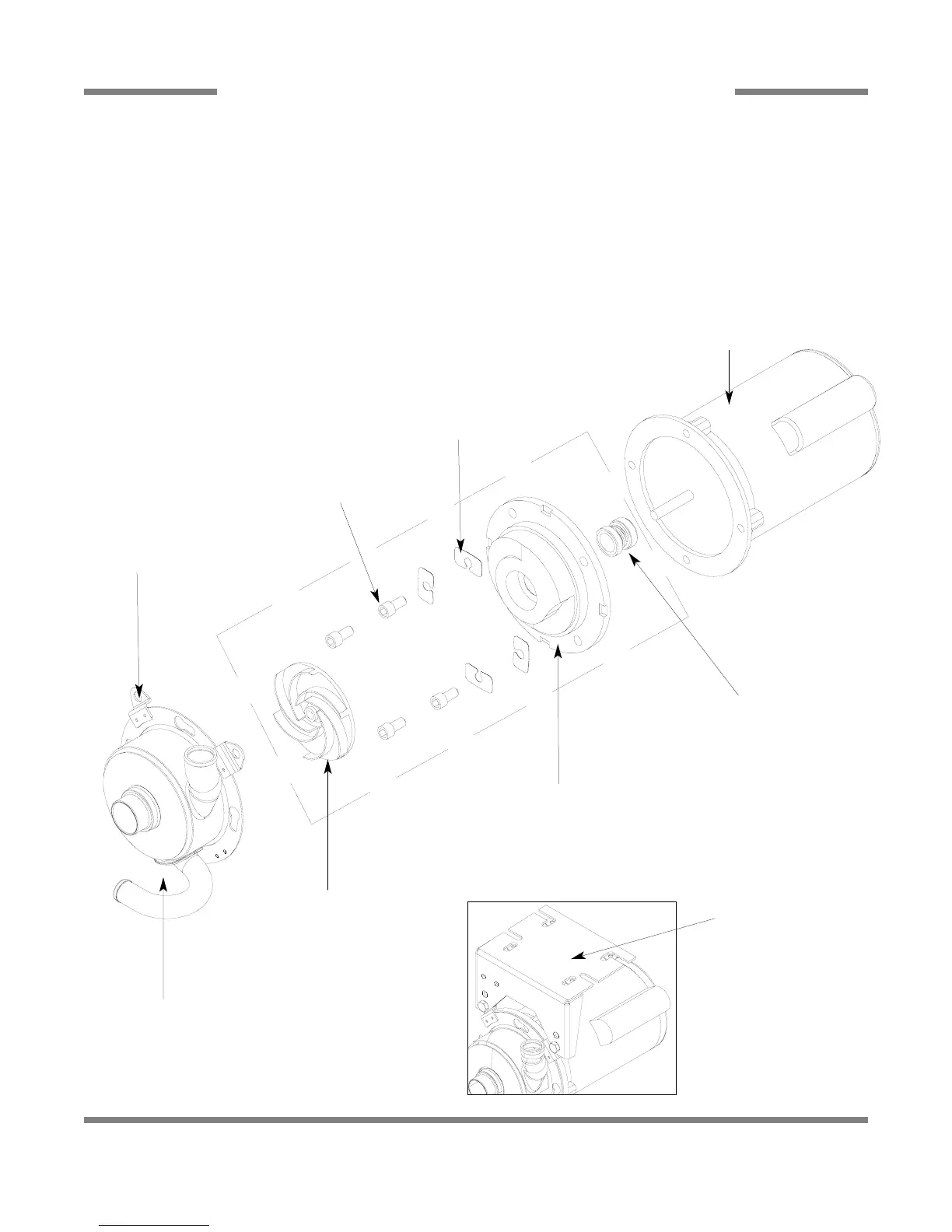

MOTOR & PUMP ASSEMBLY
Impeller Assembly, 60 HZ
05700-002-81-86
Pump Casing-Stainless Steel, 60 HZ
05700-002-85-00
Mechanical Seal, 60 HZ
05330-002-34-22
Other parts not shown.
Drain Plug
04730-002-81-89
Mounting Bracket
05700-003-31-58
Case O-Ring, 60 HZ
05330-002-81-83
Seal Plate, 60 HZ
05700-002-81-87
Case Capscrew
05305-002-81-88
Hardware:
Bolt, 3/8”-16 x 1” (2 per)
05305-276-03-00
Lockwasher, 3/8” (2 per)
05311-276-01-00
Nut, Hex, 3/8”-16 (2 per)
05310-276-01-00
Motor Only, 208-230V, 60 HZ, 06105-002-79-61
Motor Only, 460V, 60 HZ, 06105-003-52-64
Complete Pump & Motor Assembly, 60 HZ, With Bracket
05700-003-31-57
Complete Pump & Motor Assembly, 60 HZ, No Bracket
06105-002-72-75
Pump Only Assembly, 60 HZ
(Area indicated within box, Casing is included)
05700-002-79-50
Complete Pump & Motor Assembly, 480V 60HZ, With
Bracket
05700-003-52-80
Complete Pump & Motor Assembly, 480V 60 HZ, No
Bracket
06105-003-52-78
Shim Kit
05700-002-82-58
