Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised:
09-18-09
SECTION 5: PARTS SECTION
31

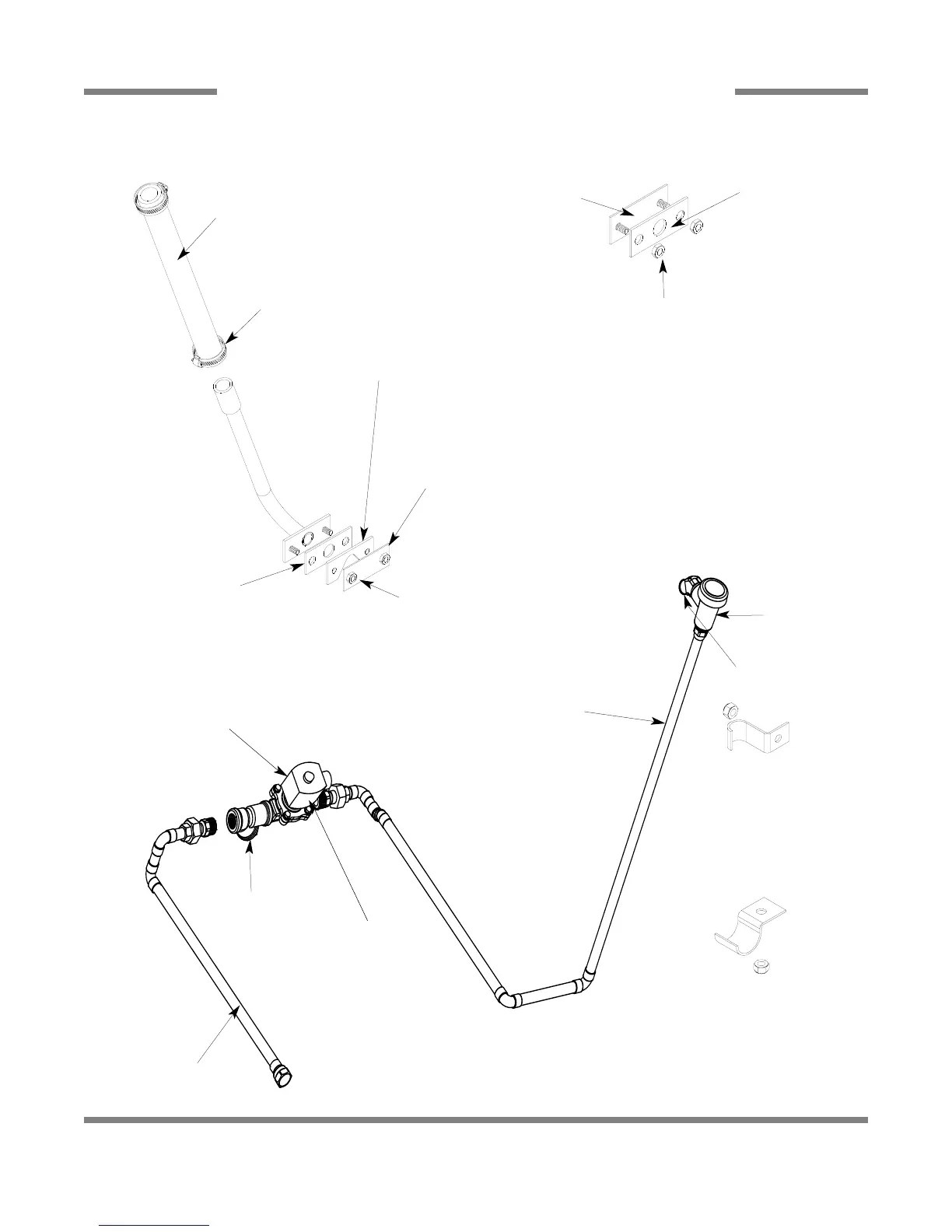

PLUMBING ASSEMBLIES - AVENGER™LT
Valve, Solenoid 1/2" 110 Volt
04810-003-71-55
Incoming Plumbing Assembly
05700-003-34-66
Incoming Connection Plumbing
05700-003-34-65
Y-Strainer
04730-217-01-10
Vacuum Breaker Tubing
Assembly
05700-003-34-36
Clamp Pipe
05700-011-38-62
Clamp Pipe
2 per assembly
05700-000-35-05
Connects to
45 Deg. Elbow
Clamp, Hose
04730-719-06-09
Injector Hose, 3/4” x 11”
05700-003-29-68
Gasket, Rinse
05330-111-42-81
Plate, Deflector
05700-002-62-49
Plate, Rinse
05700-011-82-86
Plate, Rinse Weldment
05700-011-82-73
Complete Incoming
Plumbing Assembly
05700-003-34-67
Vacuum Breaker
04820-003-06-13
Elbow, 45 Deg.
1/2” NPT x 3/4” Hose
04730-003-29-22
Gasket, Rinse
05330-111-42-81
Locknut, 1/4”-20 S/S Hex w/Nylon Insert
05310-374-01-00
Locknut, 1/4”-20 S/S
Hex w/Nylon Insert
05310-374-01-00
Locknut, 1/4”-20 S/S
Hex w/Nylon Insert
05310-374-01-00
Locknut, 1/4”-20 S/S
Hex w/Nylon Insert
05310-374-01-00
