Avenger™ Series Technical Manual 7610-003-34-01
Issued: 05-02-2007 Revised: 10-07-2007
SECTION 6: ELECTRICAL SCHEMATICS
52
Avenger
™

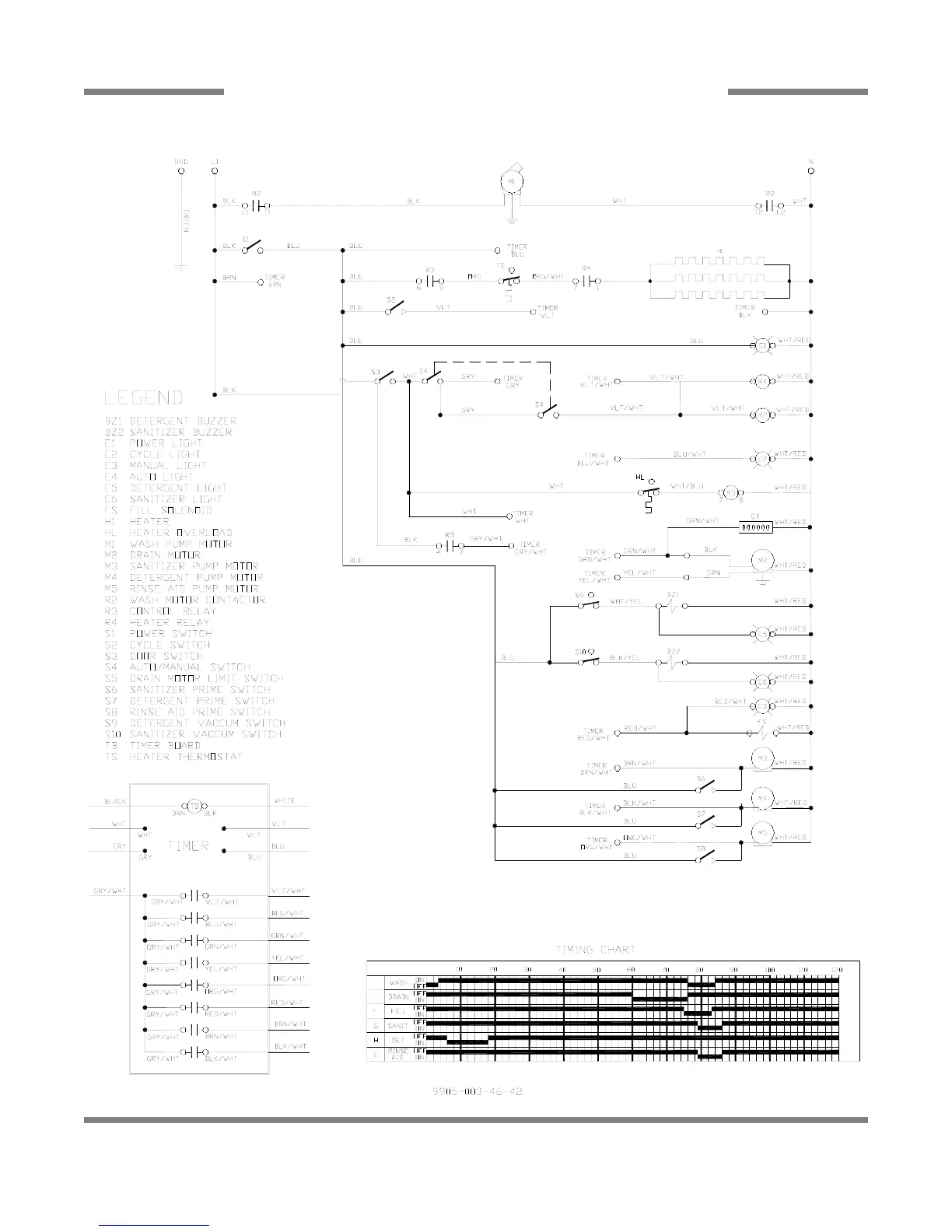

LT 115 VOLT - 60 HERTZ - SINGLE PHASE
