Jackson Avenger LT - Vacuum Switch Assembly

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: 01-31-2008
SECTION 5: PARTS SECTION
VACUUM SWITCH ASSEMBLY
47

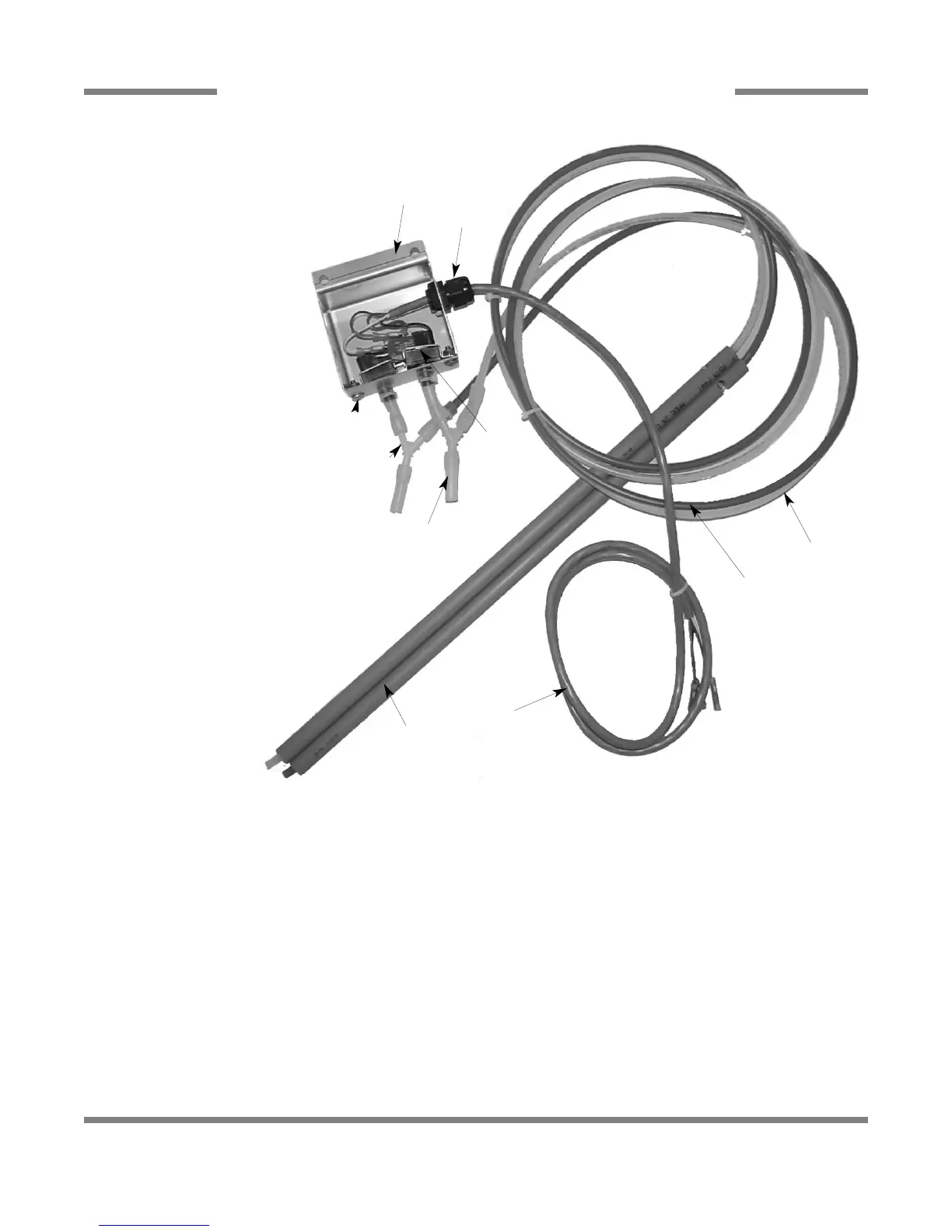

ITEM QTY DESCRIPTION Mfg. No.
Complete Assembly 05700-003-55-98
1 1 Box, Vacuum Switch 05700-003-55-96
2 1 Harness, Vacuum Switch 05700-003-55-97
3 1 Fitting, .231 x .394 Liquid Tite 05975-011-49-03
4 2 Switch, Pressure 06685-003-36-13
5 2 Bracket, Pressure Switch 05700-003-53-03
6 2 Locknut, 10-32 S/S Hex w/ Nylon Insert 05310-373-02-00
7 2 Screw, 10-32 x 3/8” Long 05305-173-12-00
8 2 Wye, 1/4” Barbed 04730-003-36-14
9 6 Tubing, Tygoprene 1” Long 05700-003-53-26
10 2 Tubing, 1/4” ID x 100” Long, Red 05700-003-03-45
11 2 Tubing, 1/4” ID x 100” Long, Clear 05700-003-20-67
12 2 Stiffener, Chemical Tube 05700-002-66-49
13 12 Tie, Cable 05975-602-01-16
4, 5
12
10
11
2
3
1
9
